Professional Solutions for Eliminating Air Pockets and Protecting Pipeline Systems
We specialize in providing comprehensive air valve solutions for pipeline air pockets removal, including air release valve pipeline installations, air vacuum valve for water systems, combination air valve function optimization, and advanced air valves for surge protection. As a leading manufacturer of premier air valve, we offer premium solutions designed to address the complete range of air-related issues in pipeline systems.
Proper air valve installation high points and strategic placement throughout the pipeline network are critical for effective air management and vacuum protection valve pipeline systems. Our expertise in air valve selection chart application ensures optimal performance for your specific operating conditions.
Shield™ Air Valve - Comprehensive Air Management Solutions for Pipeline Systems
Understanding the air release valve vs air vacuum valve differences and when to use combination air valves is essential for proper system design. Each type serves specific functions in pipeline air management and protection.
Air Release Valves
Continuous release of accumulated air during system operation
Air Vacuum Valves
Admit air during pipeline drainage and prevent vacuum conditions
Combination Air Valves
Combines air release and air vacuum functions in one uniton
Understanding how to size air valves correctly is critical for system performance and protection. Improper sizing can lead to inadequate air release or admission, resulting in reduced efficiency and potential damage.
Pipe diameter and length - Determines the volume of air to be released or admitted
System pressure - Affects air valve capacity and selection
Flow velocity - Influences air accumulation patterns
Pipeline profile - High points require air release valves, low points need vacuum valves
Water quality - Corrosive fluids may require wastewater air valve stainless steel construction
Our engineering team uses industry-standard air valve selection chart methodologies to ensure optimal sizing for your specific application, whether it's an air valve for pump stations or air valve for irrigation systems.
Our comprehensive air valve portfolio addresses all aspects of pipeline air management, from basic air release to advanced surge protection. Each category is designed to solve specific air in pipelines problems.
Designed for continuous release of accumulated air during normal pipeline operation to maintain hydraulic efficiency air valves should optimize.
Small Orifice Air Release Valves
For continuous release of small air pockets
ARV-S
Large Orifice Air Release Valves
For rapid air release during filling and air pockets removal
ARV-L
Stainless Steel Air Release Valves
Corrosion prevention air valves for aggressive fluids
ARV-SS
Essential for vacuum protection valve pipeline systems, admitting air during drainage and preventing collapse.
Single Air Vacuum Valves
Basic vacuum protection for standard applications
AVV-S
Double Air Vacuum Valves
Enhanced protection with redundant safety features
AVV-D
Wastewater Air Vacuum Valves
Specialized designs for sewage and wastewater systems
AVV-WW
Integrated solutions combining air release and vacuum protection in single units for comprehensive air management.
Standard Combination Air Valves
Combined air release and vacuum valve functions
CAV-S
Surge Protection Combination Valves
Advanced air valves for surge protection during operation
CAV-SP

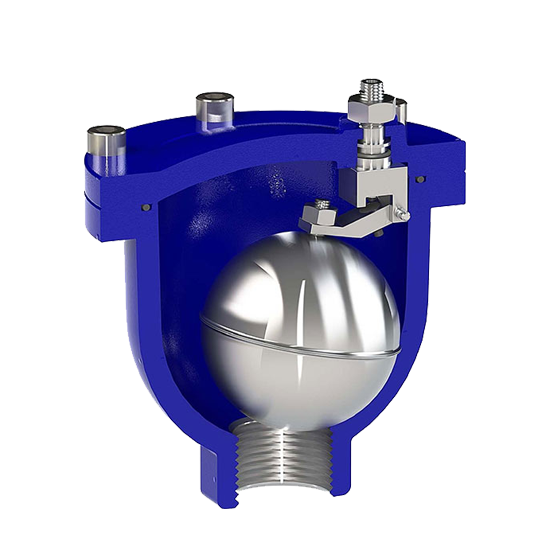

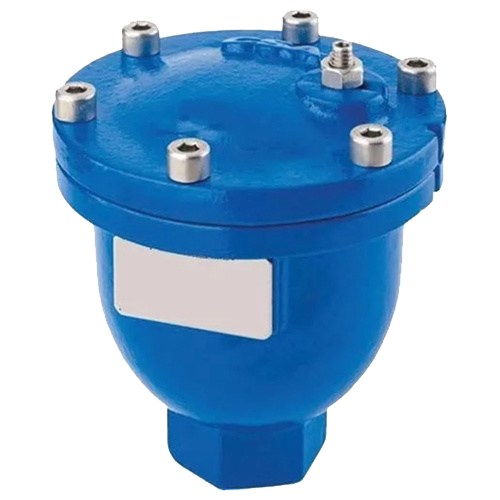

Air Release Valve - Pipeline Air Pockets Removal
Air release valve pipeline installations are essential for maintaining hydraulic efficiency air valves should optimize in water distribution systems. These valves continuously release small air pockets that accumulate at pipeline high points during normal operation. Without proper air release, trapped air can reduce flow capacity by up to 30% and create air in pipelines problems that lead to increased pumping costs and potential water hammer. Our air release valves feature precision orifices and floating ball mechanisms that automatically release air while maintaining a liquid seal. For corrosive applications, we offer wastewater air valve stainless steel constructions with specialized corrosion prevention air valves coatings.
Continuous air release during normal system operation
Maintains hydraulic efficiency by eliminating air pockets
Automatic operation without external power requirements
Corrosion-resistant materials including stainless steel options
Easy maintenance access for air valve maintenance and repair
Water transmission mains, distribution networks, industrial process lines, fire protection systems, and irrigation networks where continuous air release is necessary to maintain system efficiency and prevent air-related issues. Proper air valve installation high points are critical for optimal performance.

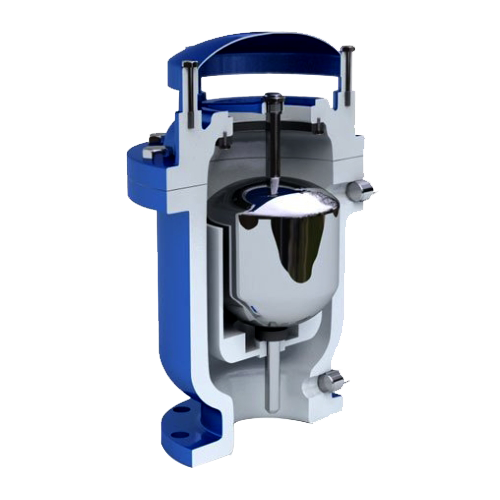

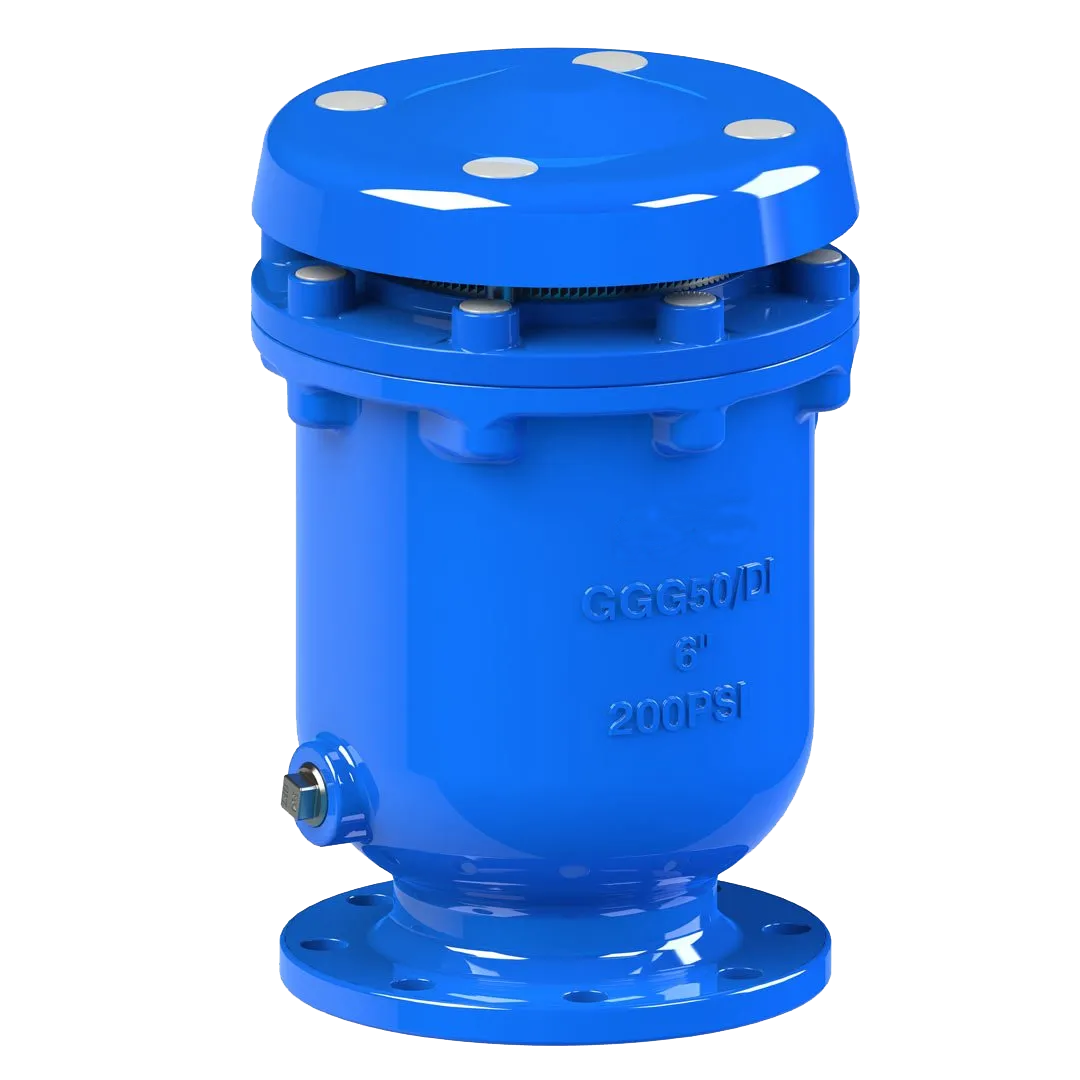

Air Vacuum Valve - Vacuum Protection for Pipelines
Air vacuum valve for water systems provide essential vacuum protection valve pipeline safety during drainage, pump shutdown, or line break conditions. These valves admit atmospheric air into the pipeline to prevent vacuum formation that could collapse pipes or damage equipment. Understanding the differences between air release valve vs air vacuum valve functions is crucial for proper system design. Our vacuum valves feature large orifices that can admit substantial air volumes rapidly when needed. We offer specialized designs including wastewater air valve stainless steel models for aggressive fluids and corrosion prevention air valves with protective coatings for harsh environments.
Prevents pipeline collapse during drainage or pump failure
Large air admission capacity for rapid vacuum relief
Positive sealing when system is pressurized
Durable construction for long service life
Minimal maintenance with self-cleaning mechanisms
Pipeline high points, pump discharge lines, transmission mains, storage tank inlets and outlets, and any location where vacuum conditions could occur during system operation or maintenance. Essential for air valve for pump stations installations to prevent pump damage during shutdowns.

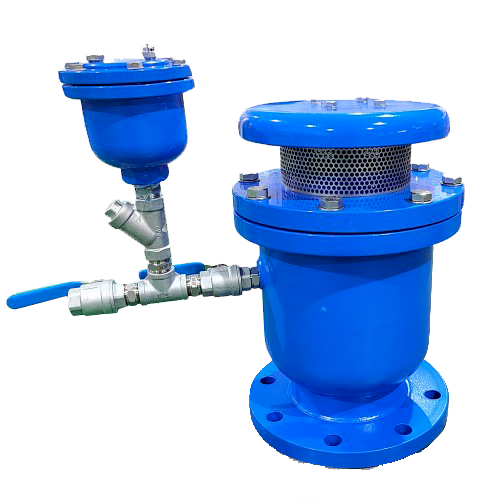

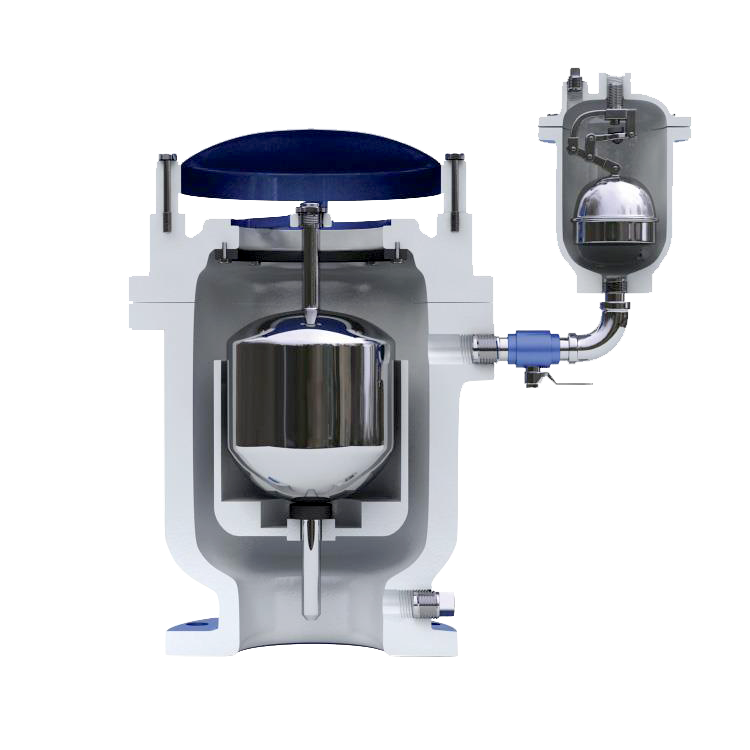

Combination Air Valve - Integrated Air Release and Vacuum Protection
Combination air valve function integrates both air release and vacuum protection in a single compact unit, providing comprehensive air management for pipeline systems. These valves are particularly valuable where space constraints limit installation of separate components. Understanding how to size air valves of this type requires consideration of both air release and vacuum admission requirements. Our combination valves feature independent operating mechanisms for each function, ensuring reliable performance under all conditions. We offer advanced models with air valves for surge protection capabilities and non-slam air valve technology to prevent water hammer during rapid air expulsion.
Combined functionality in a single compact unit
Space-saving installation compared to separate valves
Independent operation of air release and vacuum functions
Reduced installation costs with fewer connections
Comprehensive protection against all air-related issues
Pipeline high points in water distribution systems, pump stations, treatment plant piping, industrial process lines, and irrigation networks where both air release and vacuum protection are required. Ideal for locations with limited space for valve installation.
Proper air valve maintenance and repair procedures are essential for ensuring long-term reliability and performance. Regular maintenance prevents failures and extends service life, while prompt repair minimizes system downtime.
1
Quarterly visual inspections to check for leaks, corrosion, and proper operation. Annual functional testing to verify air release and admission performance.
2
Cleaning of internal components, lubrication of moving parts, and replacement of wear components before failure occurs to ensure continuous protection.
3
Application of protective coatings, cathodic protection where applicable, and material selection including wastewater air valve stainless steel options for aggressive environments.
4
Comprehensive repair capabilities including component replacement, reseating, and full rebuild services to restore valves to like-new condition.
Why Choose Shield Air Valves?
As a leading supplier of air valve solutions from premier manufacturers including air valve manufacturer Val-Matic, Shield Valve combines decades of engineering expertise with comprehensive product knowledge. Our air valves are designed to international standards, ensuring reliable pipeline air pockets removal, vacuum protection valve pipeline safety, and optimal hydraulic efficiency air valves should deliver.
Ready to solve your air in pipelines problems? Contact our engineering team today for expert guidance on air valve selection chart application, detailed specifications for your specific application, and professional recommendations on how to size air valves correctly for your system. Our experts will help you choose the perfect air release valve pipeline solution, air vacuum valve for water systems protection, or combination air valve function optimization for your unique operating conditions.
Download detailed technical drawings, product brochures, and specifications for our valves. These resources provide comprehensive information for engineers, procurement specialists, and maintenance teams.
?Technical Drawings
Complete set of detailed engineering drawings in PDF format for easy integration into your design projects. Includes dimensional drawings, assembly diagrams, and installation guidelines.
Find Technical Drawings of SHIELD Air Release Valve
Download Product Brochure of SHIELD Air Release vent Valve
Download Technical Data Sheets of SHIELD Air Release vent Valve
See the Installation Manual of SHIELD Air Release vent Valve
×
