Plunger Valve

Engineered for Ultimate Control and Reliability

In the demanding world of fluid system control, where precise pressure and flow management is critical, the plunger valve stands as a specialized and superior solution. Unlike general-purpose valves, a true plunger control valve is engineered for one primary task: to safely and reliably reduce pressure heads and control flow rates with exceptional linearity and minimal damage. Shield's Plunger Valve embodies this engineering philosophy, offering unmatched performance for critical applications in water distribution, hydropower, and industrial systems.

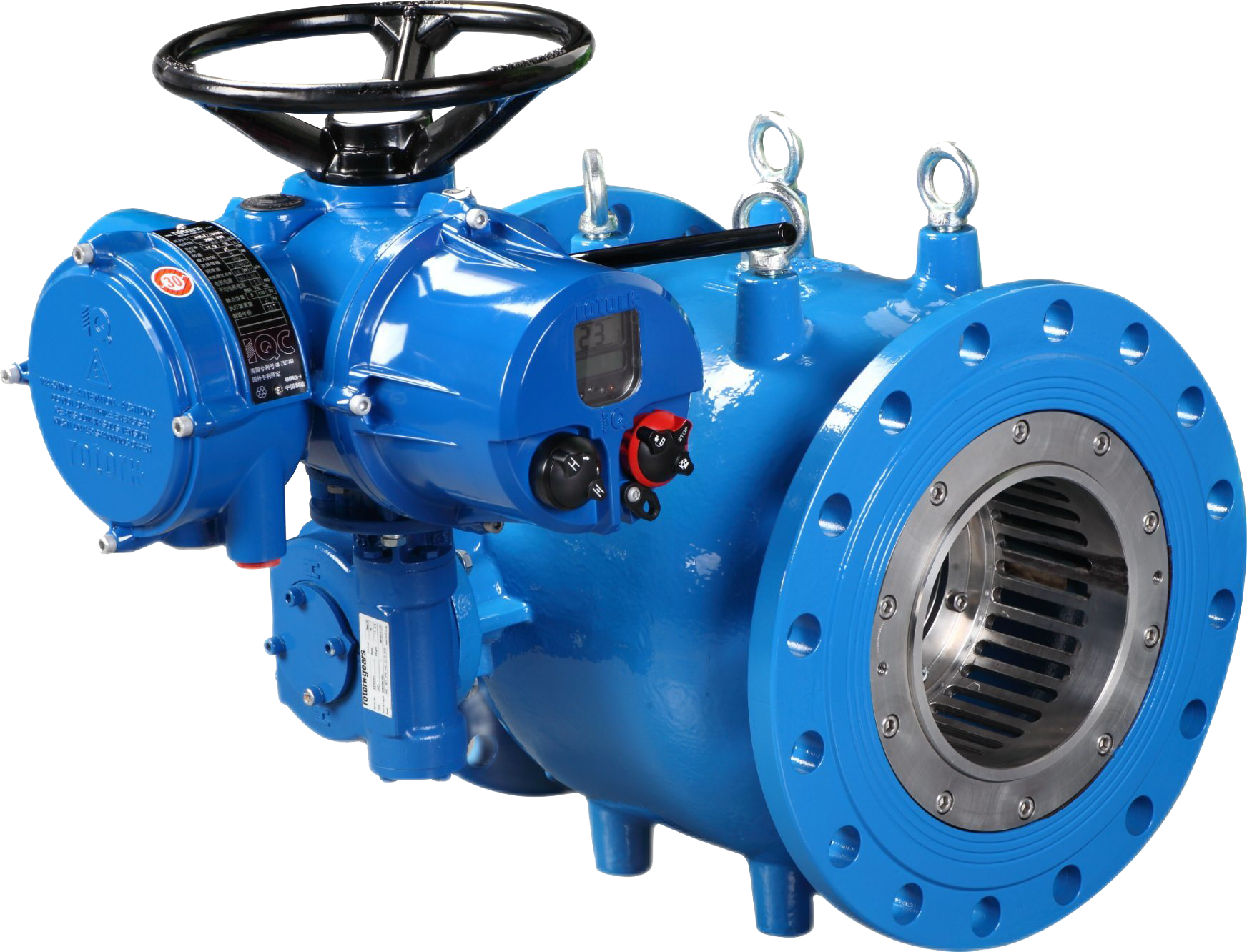

Shield™ Plunger Valve - 20" 150LB Flanged Type

Design Features

Unmatched Precision in Flow and Pressure Control

The core challenge in many fluid systems is finding a valve that provides precise, fine control without introducing damaging side effects like cavitation. Standard butterfly valves or gate valves, due to their asymmetric design, are unsuitable for continuous throttling and can suffer or cause severe material damage.

Its innovative design features a sliding piston axially guided within the valve body, creating a perfectly ring-shaped symmetrical cross-section at every opening position. This unique geometry, optimized through Computational Fluid Dynamics (CFD), ensures a linear control curve across an impressive 96% of its entire stroke. From a 4% opening to full bore, operators achieve predictable and precise modulation, whether for downstream pressure control, flow control, or reservoir inlet management. This makes it an ideal pump control valve and essential for turbine bypass and turbine control applications.

Features & Benefits

1 Advanced Cavitation Control

Intelligently splits flow into individual streams, directing energy conversion safely to the center of the pipe, away from vulnerable walls.

2 Exceptional Linearity

Provides linear control curve across 96% of its entire stroke for predictable and precise modulation.

3 Robust Construction

Four surface-hardened guides ensure uniform piston loading and minimal wear, even under vibration conditions.

4 Field Replaceable Components

Vaned ring, slotted cylinder, and perforated cylinder inserts can be replaced on-site for easy maintenance.

5 Superior Durability

Main O-ring seal located on the piston, recessed safely outside the cavitation zone for long-term sealing integrity.

6 Versatile Applications

Suitable for water distribution, hydropower, industrial systems, and even air flow control in wastewater treatment.

Product Types & Configurations

Our Plunger Valve is available in various configurations to meet specific application requirements:

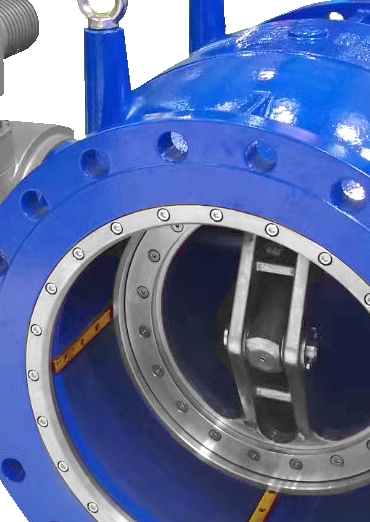

Standard Type

This type of structure is used in conditions with low pressure difference and minimal cavitation.

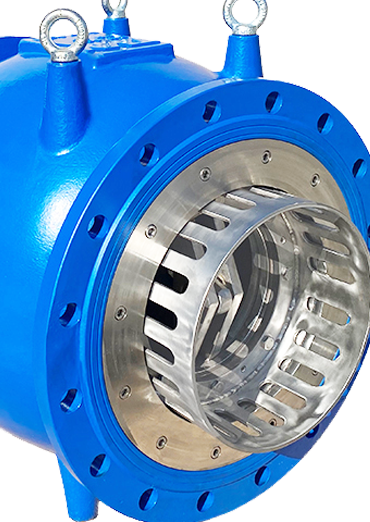

Slotted Cylinder Type

The slotted cylinders can direct the fluid, and the cavitation falls flat without harm in the middle of the pipe or even inside the cylinder.

Application Fields

Built for Diverse and Demanding Applications

The scalability and flexibility of the plunger valve make it the correct valve for a vast array of specialty applications beyond simple isolation. Its robust construction, with a body of ductile cast iron and standard fusion bonded epoxy coating for superior corrosion protection, meets stringent international standards like NSF/ANSI 61 for drinking water.

Water Distribution Systems

Acting as a control device in the bottom outlet valve of dams and reservoirs, ensuring precise flow control.

Hydropower Plants

Functioning as a surge anticipator valve in pumping systems and turbine bypass for energy management.

Industrial Process Control

Serving as a safety device in bypass outlets for various industrial applications requiring precise pressure regulation.

Wastewater Treatment

Suited for air flow rate control in aeration tanks at wastewater treatment plants.

Drinking Water Systems

Pilot-operated pressure-reducing valve without auxiliary power requirements for municipal water supply.

This wide range of uses across drinking water, raw water, and air systems underscores its versatility.

Selection Considerations

Pressure Requirements

Consider the maximum pressure differential and select appropriate control inserts (vaned ring, slotted cylinder, or perforated cylinder).

Flow Characteristics

Evaluate the required flow control range and linearity needs for your specific application.

Cavitation Control

Assess the potential for cavitation damage and select the appropriate valve configuration to manage energy conversion safely.

Actuation Method

Choose between manual operation, hydraulic control, or electric gear actuation based on your system requirements.

Complete Plunger Valve Solutions

Our plunger valves are engineered for precision control in the most demanding fluid systems, offering advanced cavitation control and exceptional linearity across 96% of the valve stroke. Available in sizes from 2 inches to 60 inches, with pressure ratings up to Class 300, these valves provide reliable performance in water distribution, hydropower, industrial process control, and wastewater treatment applications.

All valves feature robust ductile iron construction with fusion bonded epoxy coating for superior corrosion protection, meeting international standards including NSF/ANSI 61 for drinking water applications. With field-replaceable components including vaned rings, slotted cylinders, and perforated cylinder inserts, our plunger valves offer easy maintenance and long-term reliability. Whether you need pressure reduction, flow control, surge anticipation, or turbine bypass functionality, we have the engineering expertise to provide customized solutions for your specific requirements.

Your Partner for Complex Flow Control Solutions

Choosing the right plunger valve involves more than just specifications; it requires a partner with deep application expertise. Our engineers provide comprehensive support from the project planning phase, helping define the optimal valve size, control insert, and actuation method for your specific operating medium and conditions.

We deliver not just a product, but a positive result for economic efficiency, operating safety, longer life, and improved controllability.
