Casting Steel Gate Valve

The Ultimate Guide for Industrial Flow Control

In the world of industrial fluid handling, precision, durability, and reliability are non-negotiable. At the heart of many critical systems, you'll find the cast steel gate valve—a workhorse designed for demanding applications. But what makes this valve the preferred choice across industries, and how do you select the right one for your needs?

Features and Benefits

Precision engineering is at our core. Every valve conforms to rigorous international standards, including API 600 cast steel gate valve specifications. We provide various designs to suit your system requirements:

• OS&Y cast steel gate valve: The outside screw and yoke design allows for easy visual confirmation of the valve position, ideal for maintenance and safety.

• Flanged cast steel gate valve: Ensures a robust and leak-proof connection for piping systems.

• Pressure seal bonnet gate valve: Specifically designed for high-pressure applications common in power generation.

• Full port cast steel gate valve: Minimizes pressure drop by providing an unobstructed flow path.

• Metal seated gate valve: Offers superior abrasion resistance for handling tough media.

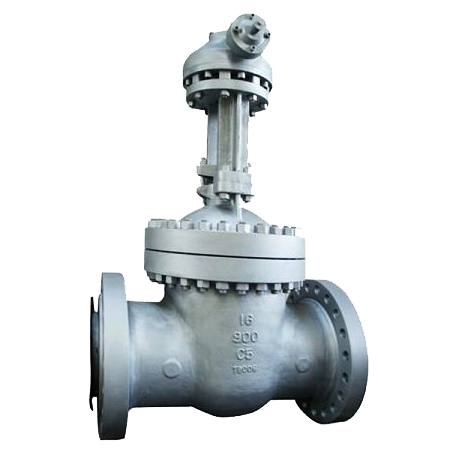

Bolted Bonnet Design

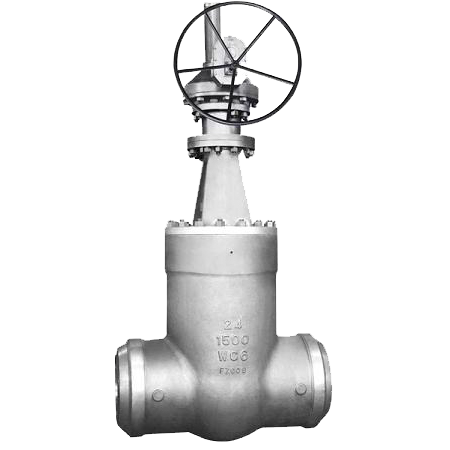

Pressure Seal Bonnet Design

Built for Your Industry's Demands

The versatility of the cast steel gate valve makes it indispensable. Are you looking for a reliable cast steel gate valve for water works? Or a robust solution for the oil and gas industry? Our valves are trusted in:

• Power station cast steel gate valve systems for steam and water lines.

• Marine cast steel gate valve applications, built to withstand harsh seawater environments.

• General service where a high temperature steel gate valve is required.

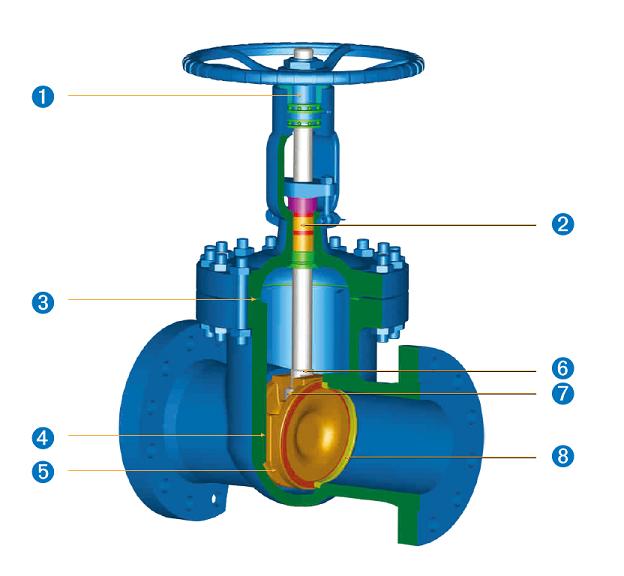

Technical Specifications & Design

1 Stem Nut: Long thread stem nut prolongs thread life and permits the removal of hand wheel in the fully open position.

2 Spacer ring: Spacer ring in conjunction with packing is used in gate valves of 300 class and above while 150-class valves are only fitted with packing.

3 Gasket: Flexible graphite gasket used for 150 Class gate valve, spiral wound gasket for Class 300 & 600 valves and metal ring gasket for gate valves of 900 or greater Class.

4 Guide: Integral guide inside body keeps wedge self-centered during valve opening and closing.

5 Wedge: Flexible wedge is able to compensate for seat surface distortion and body deformation caused by piping stress.

6 Stem: Blowout retention design: the tapered backseat face firmly contacts backseat of bonnet.

7 Bonnet/Wedge Connection: The strength of bonnet-wedge connection exceeds that of bonnet thread root.

8 Seat: Renewable seal welded seats with stellite 6 are standard design while screwed-in seats are optional.

Your Trusted Partner for Quality Valves

As leading cast steel gate valve manufacturers and cast steel gate valve suppliers USA based, we are committed to quality and customer satisfaction. We understand that factors like the cast steel gate valve price list are important, and we offer competitive pricing without compromising on quality.

Complete Cast Steel Gate Valve Solutions

Our comprehensive range of cast steel gate valves includes various pressure classes from Class 150 to Class 2500, available in sizes from 2 inches to 60 inches. We specialize in both bolted bonnet and pressure seal gate valve designs, with configurations including OS&Y (outside screw and yoke) and NRS (non-rising stem) variants. All our valves comply with international standards including API 600, API 602, ASME B16.34, and can be supplied with flanged, butt-weld, or socket weld ends.

Whether you need a standard ANSI Class 600 cast steel gate valve for general industrial service or a high-pressure Class 1500 valve for power generation applications, we have the engineering expertise and manufacturing capabilities to meet your exact specifications. Our valves are used across diverse industries including oil and gas, petrochemical, power generation, water treatment, and marine applications.

Find the Perfect Valve Today

Ready to buy cast steel gate valve online? Explore our extensive catalog of ANSI 600 rated valves and more. We provide detailed specifications, including cast steel gate valve ANSI 600 models, to help you make an informed decision.

Contact us today to request a quote or speak with our engineering experts. Let us be your trusted source for high-performance flow control solutions.
