Chemical Industry Valves - Corrosion-Resistant & High-Purity Valve Solutions

Valve Types and Their Specific Chemical Industry Applications

Isolation Valves: Gate, Globe, Ball, and Butterfly

Isolation valves provide positive shutoff capability in chemical processes, with selection depending on service requirements, pressure ratings, and maintenance considerations.

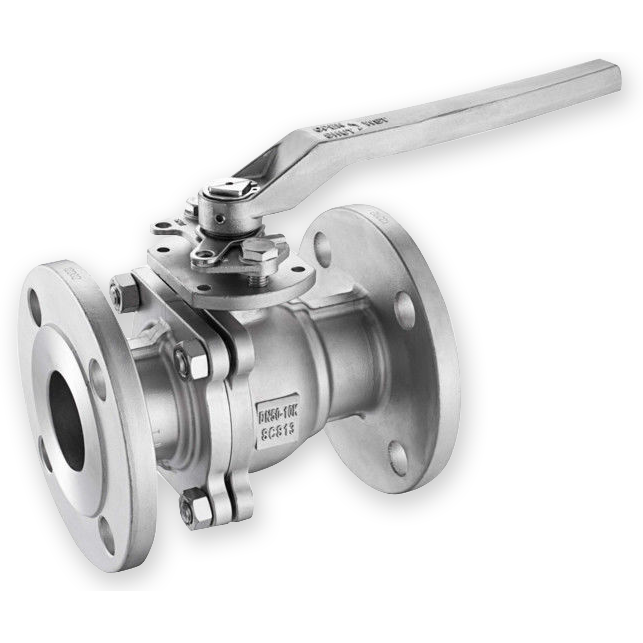

Ball valves dominate the chemical isolation market, projected to maintain the largest market share at 35.6% by 2035 due to their quarter-turn operation, reliable sealing, and versatility across pressure classes. Their full-port designs minimize pressure drop, while specialized trims and seat materials accommodate aggressive media.

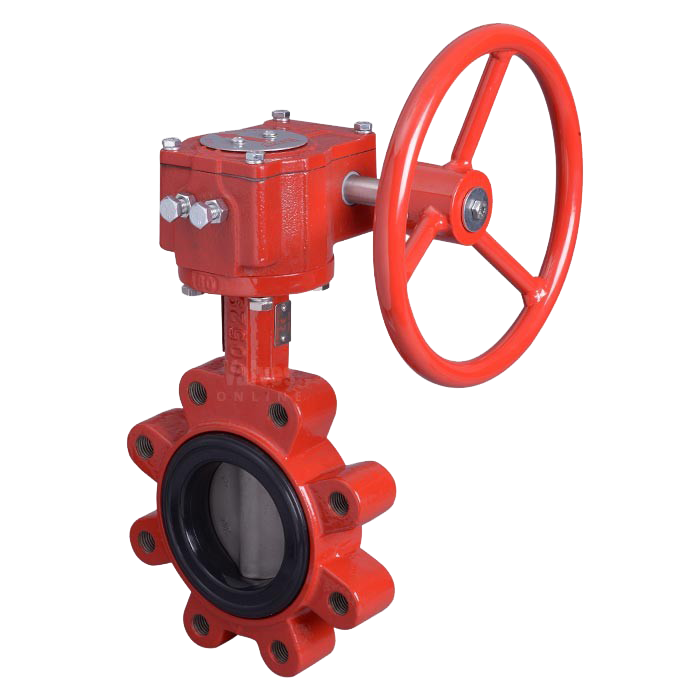

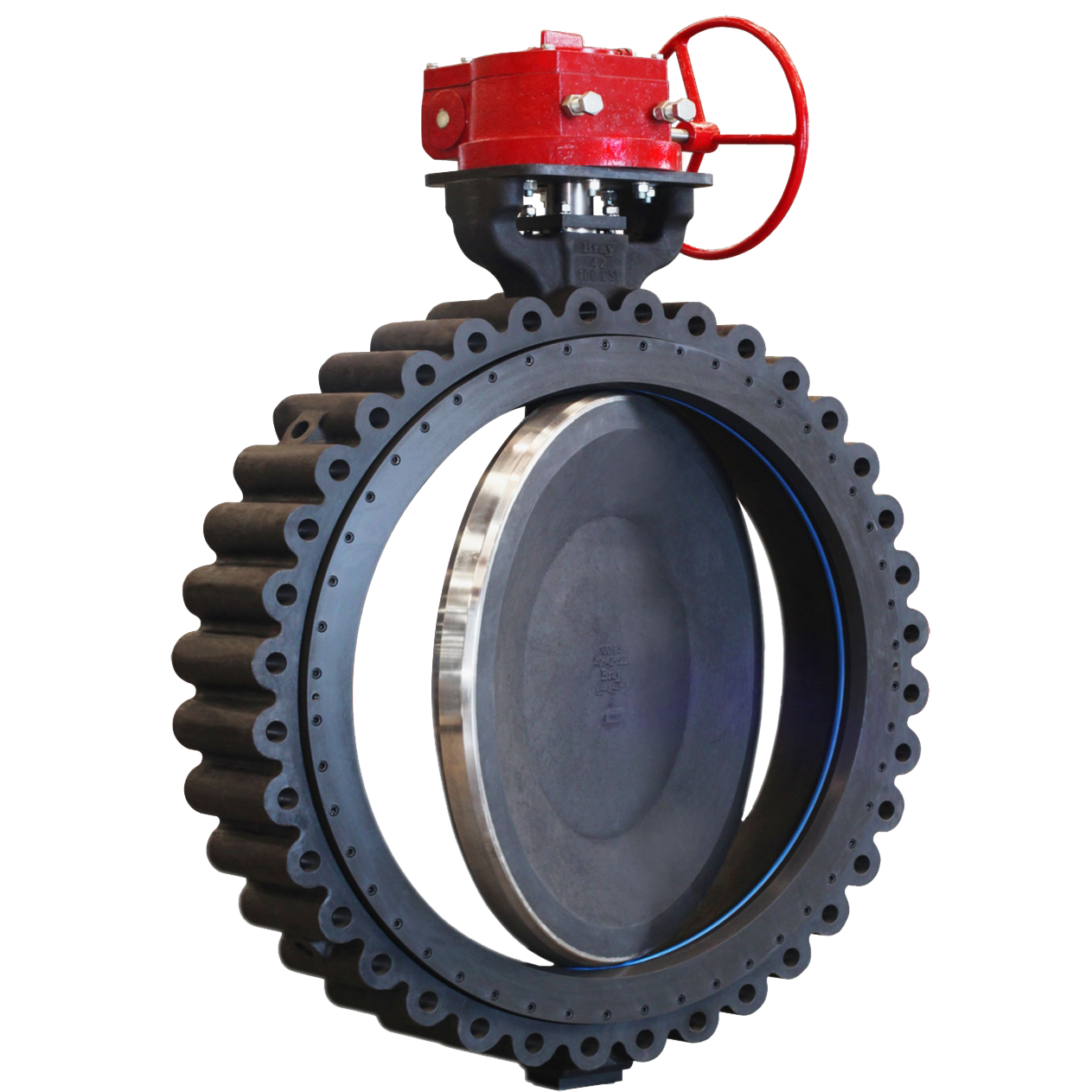

Butterfly valves offer space-saving advantages and cost-effectiveness for large diameter, low-pressure chemical applications such as tank farms and wastewater treatment within chemical complexes. Modern high-performance butterfly valves with offset discs and engineered seat materials now handle more demanding services than traditional designs.

Gate valves continue in services where straight-line flow and minimal pressure drop are paramount, though their susceptibility to corrosion in the open cavity between discs limits use in certain chemical applications.

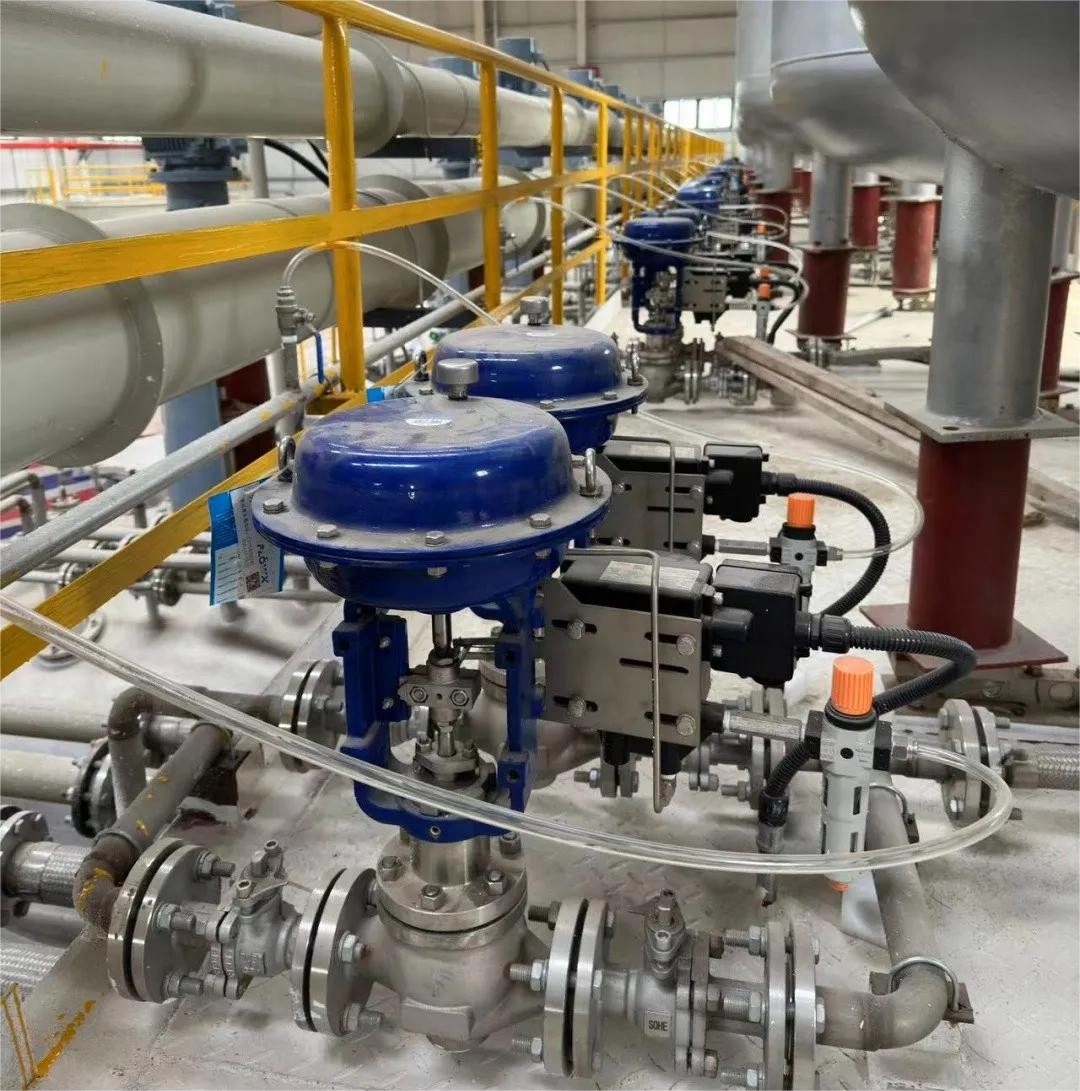

Control Valves: Precision Flow Regulation Control valves represent the precision instruments of process control, modulating flow to maintain temperature, pressure, level, or composition within specified parameters. In chemical processing, control valves must provide stable, repeatable performance while withstanding corrosive, erosive, or high-temperature media. Modern chemical control valves increasingly incorporate digital positioners, smart diagnostics, and predictive maintenance capabilities that integrate with distributed control systems.

Valves for Chemical

Processing

Industrial valves serve as the circulatory system control points in chemical plants, directing the flow of corrosive, toxic, or high-temperature media with precision and reliability. The chemical industry presents some of the most demanding operational environments for fluid control equipment, where failure can result in catastrophic safety incidents, environmental contamination, and substantial production losses.

Specialized shield valve technology has emerged to address particularly challenging applications where valves must operate in radioactive environments, inside concrete installations, or other inaccessible locations. These extended sleeve valve systems provide remote accessibility for maintenance and control in situations where direct human intervention would be hazardous or impossible. As chemical processes grow increasingly complex and regulations more stringent, the valve industry continues to innovate with materials, designs, and smart technologies that enhance safety, reliability, and operational efficiency across the chemical sector.

Corrosion-Resistant Alloys and Metals

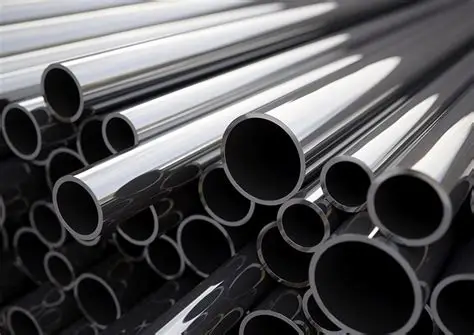

Selecting appropriate materials constitutes the foundational decision in chemical valve specification, directly impacting service life, maintenance requirements, and overall system reliability. Stainless steels, particularly grades 316 and 304, remain the workhorse materials for chemical valve construction due to their balanced combination of corrosion resistance, mechanical strength, and cost-effectiveness. For more demanding applications involving highly corrosive media such as chlorides, acids, or alkalis, specialized alloys including Hastelloy, Inconel, Monel, and titanium offer superior resistance but at significantly higher cost.

High-Performance Plastics and Linings

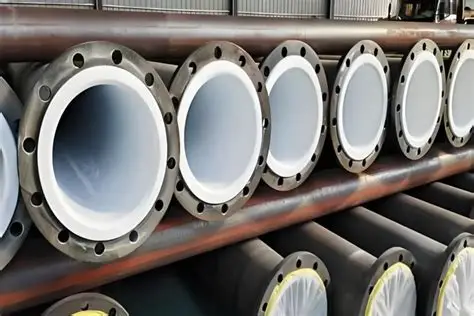

For handling particularly aggressive chemicals at moderate temperatures and pressures, plastic valves and lined valves offer exceptional corrosion resistance. PTFE (Teflon), PFA, PVDF, and PP valves provide complete immunity to a wide range of chemicals that would rapidly degrade metallic alternatives.

Composite material systems that combine structural metallic components with chemically resistant linings or coatings represent an increasingly popular solution that balances performance with cost considerations. These dual-material approaches allow valve bodies to withstand system pressures while isolating the process media from contact with susceptible materials. Specialized protective bellows shields have been developed to protect vulnerable valve components from corrosive attack, with expandable and contractible shields providing continuous protection regardless of valve position.

Unlike valves used in water distribution or general industry, chemical processing valves must withstand aggressive media attack, extreme temperature fluctuations, and maintain integrity under varying pressure conditions while preventing any leakage of hazardous substances.

The Critical Role of Valves in Chemical Processing

│

│

Corrosion-Resistant Materials of Valves

│

Specific Valves for Chemical Industry

Selecting appropriate materials constitutes the foundational decision in chemical valve specification, directly impacting service life, maintenance requirements, and overall system reliability.

Isolation valves provide positive shutoff capability in chemical processes, with selection depending on service requirements, pressure ratings, and maintenance considerations.

┃Chemical & Petrochemical

Shield Valves provides specialized extended sleeve solutions based on proven designs that have operated successfully in applications up to 1400°F and in highly radioactive environments.

Overviews

Material Selection for Chemical Service Valves

Related Valves for Chmecial Industry

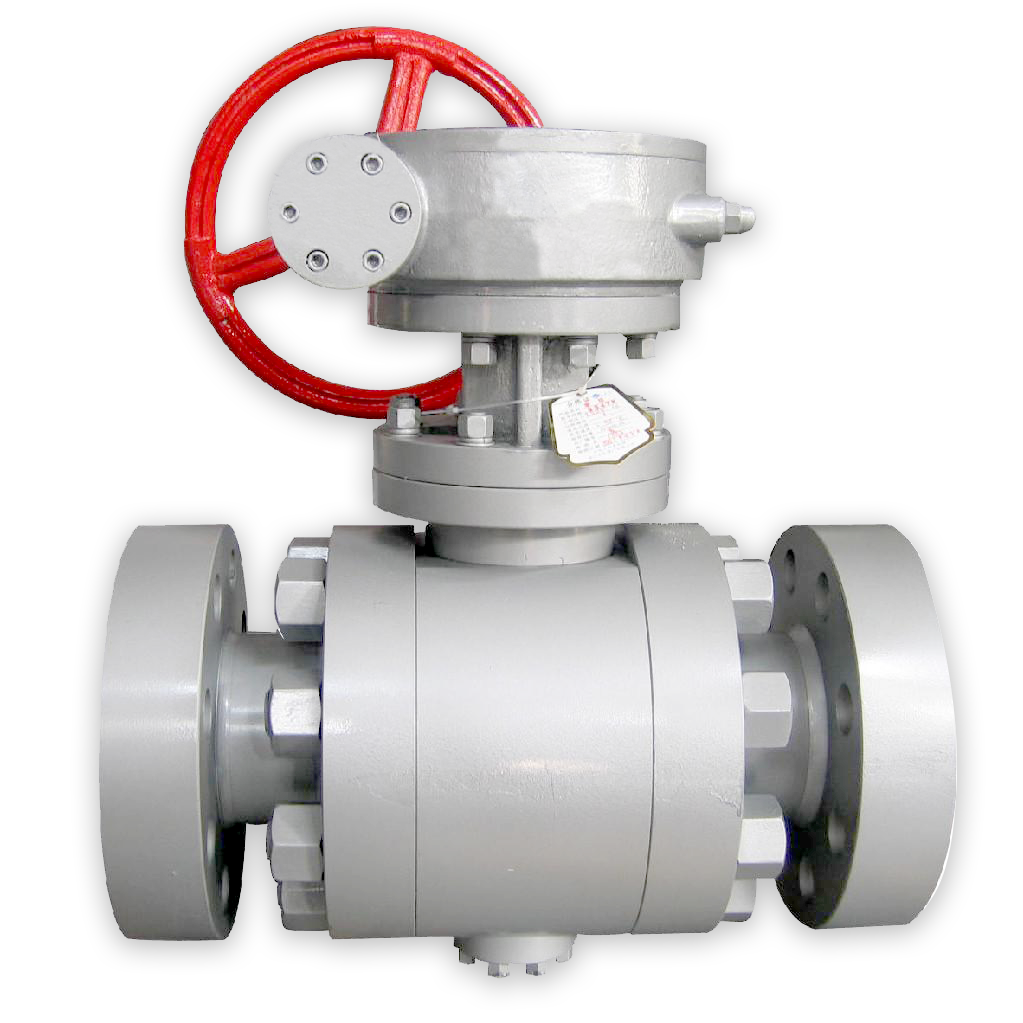

Trunnion Ball Valve

Floating Ball Valve

Resilient Seated Butterfly Valve

High Performance Butterfly Valve
