High-Performance Valve with Double Offset Design for Extended Service Life
This unique design ensures that the disc avoids rubbing against the seat during the first 90 degrees of opening and closing. This action minimizes wear and tear, significantly extends the valve's lifespan, and provides a tight, bubble-seal shut-off.
We manufacture the eccentric offset soft seated butterfly valve with precision engineering for demanding industrial applications.

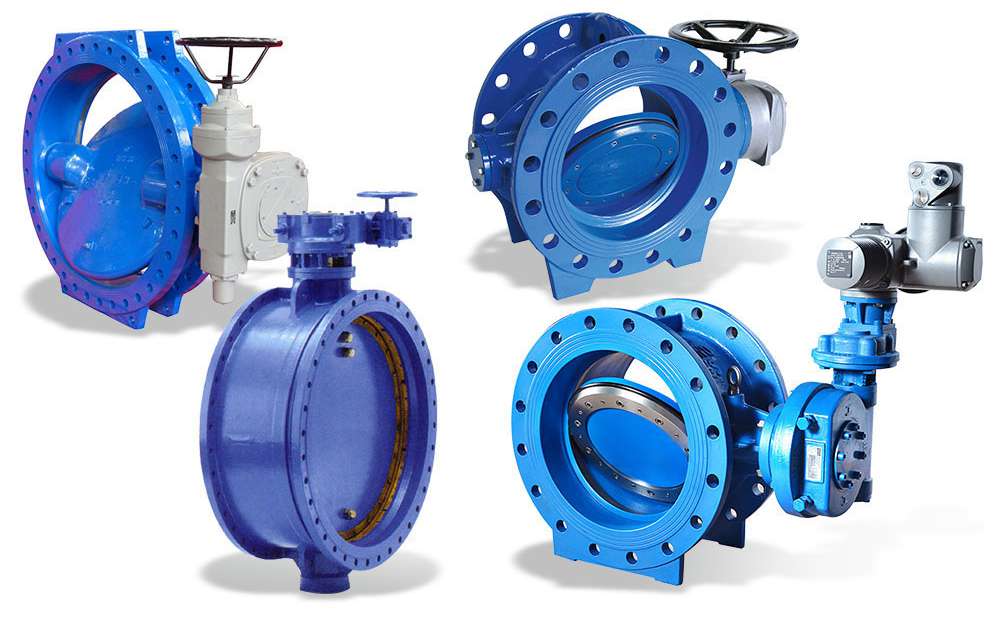

Shield™ Double Eccentric Butterfly Valve with EPDM Seal Ring - Double Flanged Type with Gear Operator
Flanged Type
Wafer Type
Gear Operated
Introducing our top-of-the-line Double Eccentric Butterfly Valve, the perfect choice for high-performance applications that demand precision and durability. This valve features a unique Double Offset design that reduces wear and extends valve life, making it ideal for a variety of industrial processes.
1
Our Double Eccentric Butterfly Valve comes in flanged configurations, making it easy to install and integrate with existing pipelines.
2
Choose from our range of actuation options, including Electric, Pneumatic, and Manual, to find the perfect fit for your specific needs.
3
Built with high-quality materials, our valve is available in both Stainless Steel and Cast Iron options, ensuring that it will withstand even the toughest conditions.
4
Our EPDM and Viton sealing options offer added chemical and temperature resistance for applications that demand it.
5
Our valve is designed to be versatile and adaptable, with options for Gear Operated, EPDM Seated, and Resilient Seated configurations.
6
Whether you're looking for a valve for water treatment, chemical processing, or any other industrial application, our Double Eccentric Butterfly Valve is the solution you've been searching for.
ShieldTM double eccentric butterfly valves disc design and sealing through elastomer seals fixed to the disc for optimum tightness and allowing seal maintenance without disassembling the valve. Its soft seal option provides excellent sealing capabilities in both directions which delivers excellent shut-off against applications.
Rugged fabricated construction, available in a wide range of sizes and special materials to match specific requirements and depending on the head under which the valve will operate. It may be equipped with by-pass for pressure balancing and a counterweight for emergency shutoff.
ShieldTM double eccentric butterfly valves (AWWA C504 butterfly valve) are compatible with the standard AWWA C504 fully. Robust design in all respects of body, shaft and disc with streamlined low head loss anti flutter contour, it is designed with tilted and fixated disc for extended service life and easy operation.
The disc seal is made of drinking water approved EPDM rubber featuring an excellent compression set and thus ability to regain its original shape. The epoxy coating and the corrosion protected shaft end zones ensure high durability.

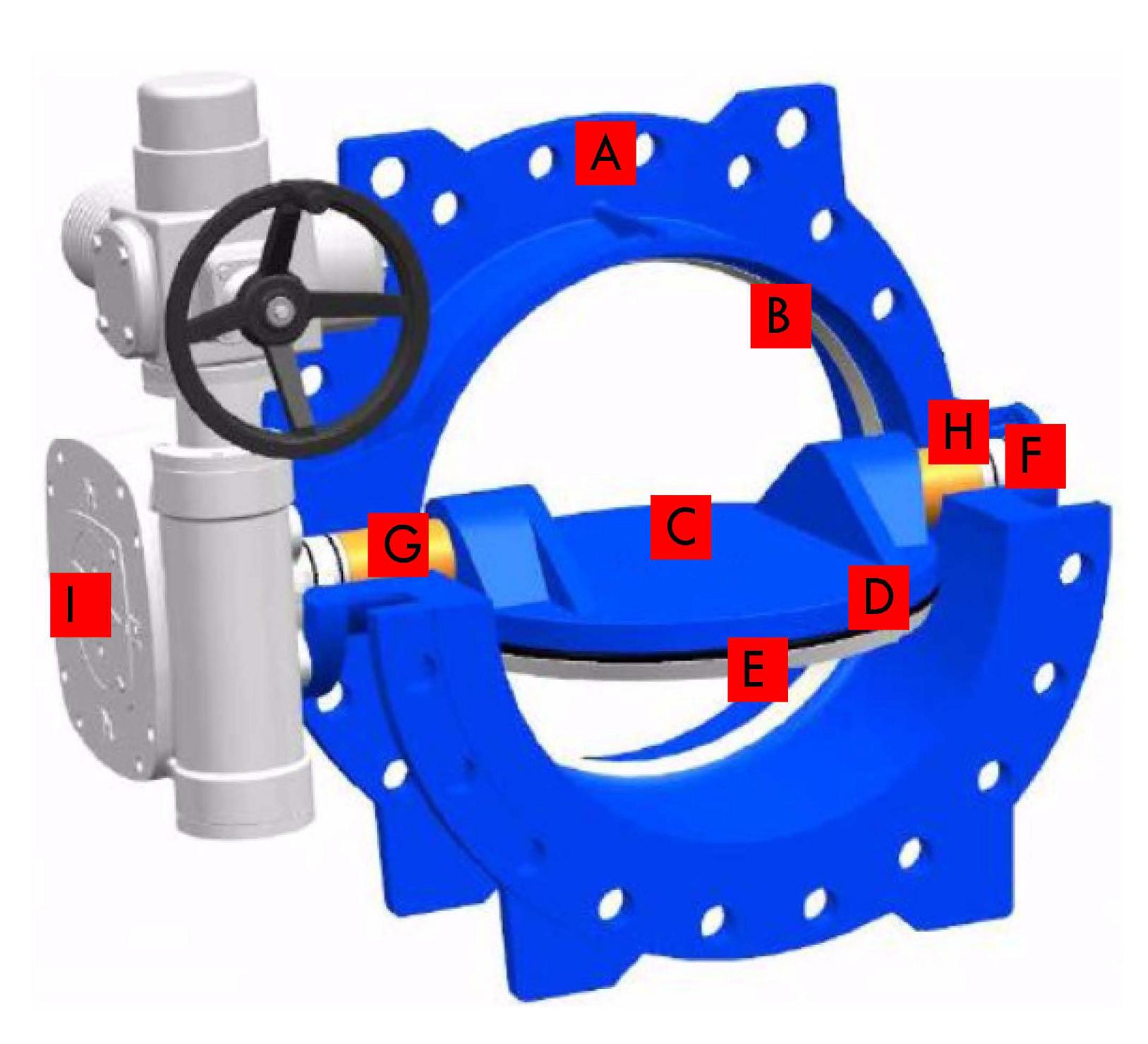

Below is a detailed breakdown of the key components that ensure the reliability and performance of our double eccentric butterfly valves.
A BODY: Heavy duty body, Double eccentric type.
B SEAT: Stainless Steel overlaied.
C DISC: The disc is fixated to prevent wear and fluttering.
D SEAL RING: The disc seal profile and rubber quality ensure low closing torques and Bidirectional sealing.
E RETAINER: Stainless steel to ensure the seal is perfect.
F BUSHING: To low operating torques.
G STEM: Stainless Steel.
H O-RING: Replaceable shaft sealing with an EPDM O-ring on a stainless steel ring.
I ACTUATOR: Available with pneumatic, hydraulic, electric or manual actuator.
Download detailed technical drawings, product brochures, and specifications for our valves. These resources provide comprehensive information for engineers, procurement specialists, and maintenance teams.
?Technical Drawings
Complete set of detailed engineering drawings in PDF format for easy integration into your design projects. Includes dimensional drawings, assembly diagrams, and installation guidelines.
Find Technical Drawings of SHIELD Double Eccentric Butterfly Valve
Download Product Brochure of SHIELD Double Eccentric Butterfly Valve
Download Technical Data Sheets of SHIELD Double Eccentric Butterfly Valve
See the Installation Manual of SHIELD Double Eccentric Butterfly Valve
See Related Certificates of SHIELD Double Eccentric Butterfly Valve
Shield Valve Co., Ltd. is a professional manufacturer of high-performance industrial valves including double eccentric butterfly valves. Our valves feature advanced double offset design, AWWA C504 compliance, and superior EPDM sealing for extended service life in demanding applications.
×
