Knife Gate Valve

Robust Solutions for Demanding Industries

To suit various operational needs, these valves come in multiple actuation types. A pneumatic knife gate valve offers rapid cycling for automated processes, while an electric knife gate valve provides precise control with electric actuation. For simpler or backup systems, a manual knife gate valve is a cost-effective and reliable option.

Features and Benefits

When it comes to construction, a heavy duty knife gate valve is built to endure abrasive and high-pressure environments. The penetrating knife gate valve is specifically designed to slice through compacted material. Common configurations include the compact wafer type knife gate valve and the full port knife gate valve, which offers a smooth, unrestricted flow path to prevent clogging—a critical feature for a slurry knife gate valve.

• Excellent seat tightness and prolonged life cycle

• Maintenance to change the seats is easy and fast

• Superior abrasion and corrosion resistance

• Strong cutting force for pulp media

• Clogging or material build-up reduced

• Reduced torque and easy operation

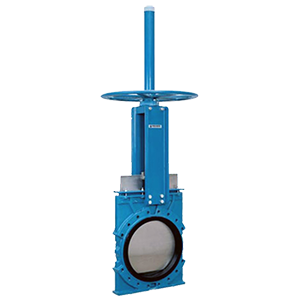

Rubber Seated Knife Gate Valve

Ideal for applications requiring bubble-tight shutoff. Resilient seats provide excellent sealing for liquids and some slurries.

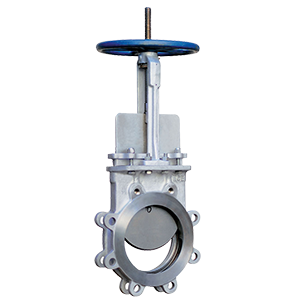

Metal Seated Knife Gate Valve

Designed for high-temperature, abrasive, or corrosive applications where resilient materials would degrade.

Critical Applications Across Key Sectors

The robust design of the knife gate valve makes it vital for numerous industries:

Mining & Minerals

A knife gate valve for mining is crucial in handling abrasive tailings and dense ore slurries. Designed to withstand extreme wear from abrasive particles.

Water & Wastewater

In treatment plants, a knife gate valve for wastewater treatment reliably controls the flow of sludge and processed water. Excellent for thick, viscous media.

Pulp & Paper

The knife gate valve for pulp and paper industry manages stock with high fiber content without clogging. Specialized design prevents fiber accumulation.

Chemical Processing

Resisting corrosive media, the knife gate valve for chemical industry ensures safe isolation. Available with corrosion-resistant materials.

Oil & Gas

Used in various stages, the knife gate valve for oil and gas sector handles everything from process water to some non-abrasive slurries.

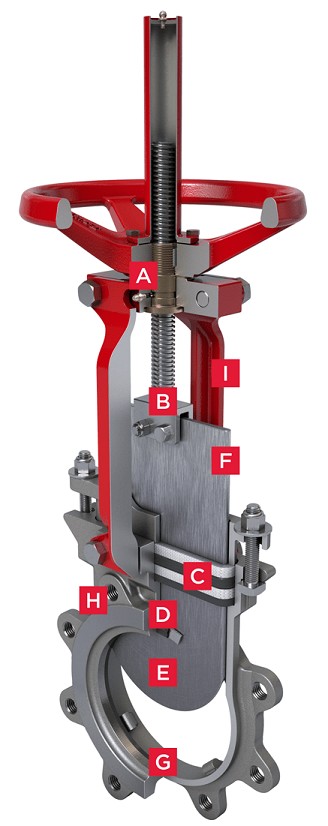

Technical Specifications & Design Features

A Topworks: Designed for easy, quick conversion between manual and pneumatic actuation. Manual valves include a lubricant injection port for continuous, smooth operation with minimal maintenance.

B Clevis: Clevis design and horizontal bolting stabilizes gate ensuring proper alignment.

C Packing: Standard energized quad seal packing for enhanced gland sealing.

D Seat: Standard integral metal seat and optional replaceable zero leakage resilient seats.

E Gate: Gate design ensures consistent alignment throughout the length of the stroke.

F Gate Design: Rounded gate design enables longer packing life and increases valve durability.

G Body: Unique body design with no dead pockets enables self-draining of valve.

H Mounting: Lugged body suitable for all mounting orientations including dead-end service.

I Yoke: Cast Yoke superstructure ensures robustness in valve design for different operators/orientation.

Selecting the Right Partner and Product

Choosing the correct valve is key to system longevity and efficiency. For engineers comparing options, understanding the difference in a knife gate valve vs slide gate valve is important; the knife gate's sharp edge is superior for cutting through solids. Leading manufacturers like Orbinox set high industry standards. Therefore, partnering with a reputable knife gate valve manufacturer or knife gate valve supplier is essential. Be sure to request detailed knife gate valve specifications and a knife gate valve price quotation to ensure the valve meets your specific technical and budgetary requirements.

In summary, from its basic manual form to advanced actuated models, the knife gate valve provides a dependable sealing solution for the world's toughest fluid control challenges. Its specialized design for slurries and solids ensures efficient, low-maintenance operation, solidifying its role as a critical component in modern industrial infrastructure.

Complete Knife Gate Valve Solutions

Our knife gate valves are engineered for the most demanding applications where conventional valves fail. Available in wafer, lug, and flanged designs, these valves excel in handling abrasive slurries, viscous fluids, and solids-laden media. We offer a comprehensive range including stainless steel knife gate valves for corrosive applications, ceramic-lined valves for extreme abrasion resistance, and high-pressure designs for challenging process conditions.

With actuation options including manual handwheel, pneumatic, electric, and hydraulic, our knife gate valves can be integrated into any control system. Sizes range from 2 inches to 72 inches, with pressure ratings up to Class 300. All valves are designed for easy maintenance with replaceable seats and packing, minimizing downtime and extending service life. Whether you need valves for mining tailings, wastewater treatment sludge, pulp stock, or chemical processing, we have the expertise to provide reliable solutions.

Get Your Knife Gate Valve Solution Today

Ready to solve your toughest flow control challenges with reliable knife gate valves? Contact our engineering team for expert advice on selecting the right valve configuration for your abrasive or solids-handling application.
