Cast Iron Globe Valve

Reliable Cast Iron Globe Valves for Cost-Effective Flow Control

The primary benefit of a cast iron globe valve lies in its robust construction and material suitability for a wide range of applications. Cast iron offers superior corrosion resistance compared to standard steel in many environments, particularly in water and steam services. This makes it the ideal choice for commercial and industrial applications that do not require the extreme pressure ratings of cast steel. For cost-sensitive projects demanding reliable performance, such as building services, irrigation, and general plant utilities, cast iron valves deliver exceptional value without compromising on function or service life.

Features and Benefits

Our globe valves are manufactured to precise standards, ensuring leak-tight operation and easy maintenance.

Robust Design Options

We offer both standard and OS&Y globe valve (Outside Stem and Yoke) designs. The OS&Y design is a critical feature for maintenance personnel, providing a clear visual indication of the valve position (open or closed) and allowing for easy packing adjustment.

Versatile Connection Types

To suit various piping installations, our valves are available with flanged ends, threaded ends, or a combination. Flanged cast iron globe valves are extremely common for permanent, bolt-on installations in pipelines, while threaded globe valves offer simplicity for smaller line sizes.

Standard Pressure Ratings

Our cast iron globe valves are typically rated for Class 125 and Class 250 pressure classes, covering the vast majority of moderate-pressure applications in HVAC systems, water supply networks, and general plant air.

Broad Size Range

We stock a wide range of sizes to meet project needs, from smaller lines like 1/2 inch globe valves and 2 inch globe valves to larger diameters for main supply lines.

Certified Safety

For applications requiring an extra layer of safety, we offer fire safe globe valve models tested to relevant international standards, ensuring performance integrity in emergency scenarios.

Valve Patterns & Configurations

Our cast iron globe valves are available in various patterns to suit different application requirements:

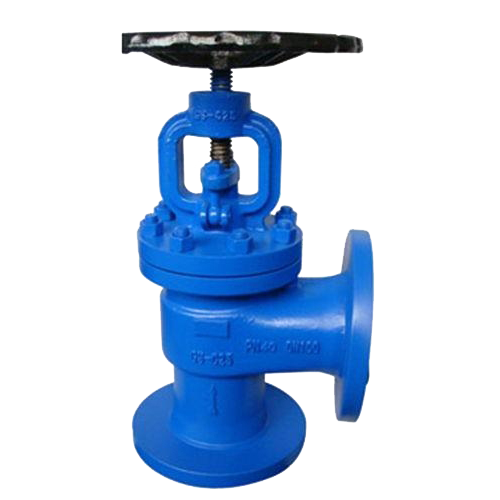

Angle Globe Valve

Designed to change flow direction by 90 degrees, eliminating the need for an elbow fitting. Ideal for applications with space constraints.

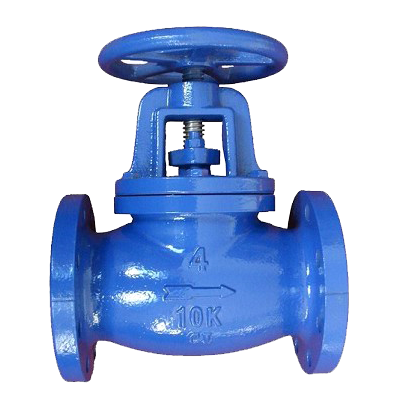

BS/API Pattern Globe Valve

Manufactured to British Standard (BS) and API specifications, ensuring compatibility with international piping systems.

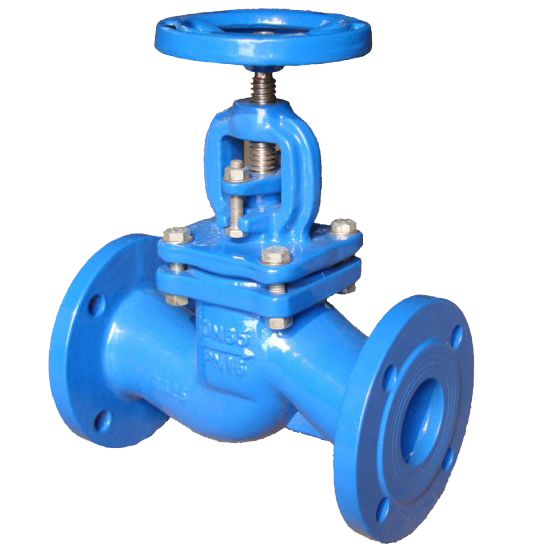

DIN Globe Valve

Designed according to German Institute for Standardization (DIN) specifications, widely used in European industrial applications.

Primary Applications and Industries

The cast iron globe valve is a versatile workhorse found in numerous sectors:

Water and Wastewater Treatment

Essential for controlling flow in treatment plants, pumping stations, and distribution networks. They are a standard choice for globe valve for water supply applications.

Heating, Ventilation, and Air Conditioning (HVAC)

Widely used in heating and cooling systems for commercial buildings to regulate water and steam flow.

General Industrial Services

Perfect for compressed air lines, lubricating oil systems, and other process fluids within pressure and temperature limits.

Irrigation and Fire Protection Systems

Used in systems where reliable shut-off is required for zone control or maintenance.

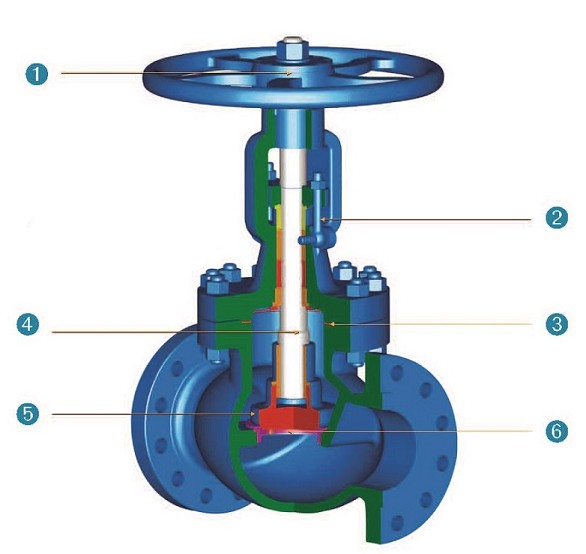

Technical Specifications & Design Features

1 Impact Handwheel: Supplied at manufacturer's option or on customer request for easier operation.

2 Gland Eyebolts: Mounted to swing aside to facilitate packing maintenance without complete disassembly.

3 Bonnet Joints: Male and female bonnet joints for Class 150 valves ensure secure connection.

4 Anti Blow-out Stem Design: Features conical backseat surface to permit repacking of valve in the fully open position.

5 Plug Seat Surface: Standard disc design as well as spherical, parabola or flat seating surface is optional on customer request.

6 Brass Seat Face: Standard design with brass seat for enhanced durability and corrosion resistance.

Complete Cast Iron Globe Valve Solutions

Our cast iron globe valves are engineered for reliable performance in moderate-pressure applications where cost-effectiveness is essential. Available in sizes from ½ inch to 12 inches, with pressure ratings of Class 125 and Class 250, these valves offer excellent value for water supply, HVAC, and general industrial services. We provide multiple end connection options including flanged, threaded, and socket weld designs to suit various piping system requirements.

All valves feature robust cast iron construction with optional ductile iron for enhanced strength. Standard trim includes brass seats and stainless steel stems for reliable operation. Whether you need valves for municipal water systems, commercial building services, or industrial process control, we have the expertise to provide cost-effective solutions that deliver long-term performance without exceeding budget constraints.

Your Trusted Valve Partner

As a leading globe valve supplier, we are committed to providing solutions, not just products. Our technical team can help you specify the perfect valve for your system requirements.

Looking for a dependable and economical flow control solution? Browse our full range of certified cast iron globe valves or contact our experts today for a quote and technical data sheets.

Get Your Cost-Effective Flow Control Solution

Ready to enhance your system with reliable cast iron globe valves? Contact our engineering team for expert advice on selecting the right valve pattern, connection type, and size for your specific application requirements.
