Forged Globe Valve

Browse：14
Product Introduction：
In industries where reliability under pressure is non-negotiable, the forged steel globe valve stands as a critical component for fluid control. Known for exceptional strength and durability, this valve is engineered to manage the rigorous demands of high-pressure and high-temperature systems, making it a premier choice for steam service, oil and gas pipelines, and other industrial settings.

+86 577 670 55569

Product Details

Product Overview

Quality and interoperability are paramount. Our valves are manufactured in compliance with the API 602 forged steel globe valve standard, a benchmark for compact, pressure-sealed forged steel valves. They are available in various pressure classes, such as Class 800, and specific material grades like Forged F304 globe valve for corrosion resistance, ensuring compatibility with international pipeline and system specifications.

Shield™ Forged Steel Globe Valve - 1/2" 800LB Socket Weld End

Design & Applications

ShieldTM Globe valves are generally used to regulate fluid passage. A globe valve is not recommended when a continuous flow is needed due to pressure drop caused by its design.

This type of valve must be installed in a specific position given that the flow enters through the inferior part and comes out through the superior part. For this reason, globe valves have an arrow that indicates the direction in which they must be installed.

Forged steel globe valves, for their design, can be used with fluids that contain particles in suspension.

Available Variants

Forged steel 3/4in 800lb globe valve threaded end with stem extension

Stem Extended Globe Valve

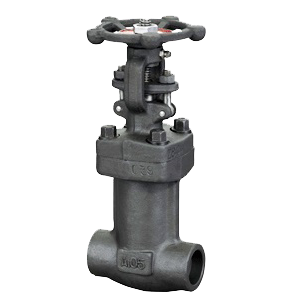

Bellowed seal forged steel 1/2in 800lb globe valve socket welded end

Bellowed Globe Valve

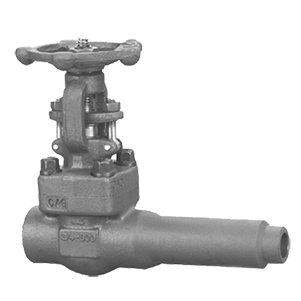

Forged steel 1in 800lb globe valve threaded end with body extension

Body Extended Globe Valve

Technical Specifications

Our forged steel globe valve is meticulously manufactured from forged carbon steel, ensuring a dense, uniform structure free from voids or inclusions. This forging process grants the valve superior mechanical properties, ideal for high pressure forged steel globe valve applications.

Common designs include the forged steel bolted bonnet globe valve, which provides a secure and maintainable seal. For enhanced safety in critical environments, we offer models with a fire safe design and forged steel globe valve with bellows seal to guarantee zero external leakage, protecting both personnel and the environment.

To fit seamlessly into diverse piping systems, we provide multiple end connection options. These include the widely used forged steel globe valve flanged end, the permanent and robust forged steel globe valve socket weld for high-integrity joints, and the forged steel globe valve NPT for threaded pipe systems. Furthermore, we cater to various operational requirements with valves featuring a standard handwheel or an OS & Y (outside stem and yoke) design for clear visual indication of the valve position.

Bonnet Designs

ShieldTM Forged Steel Globe valves are available in FOUR bonnet designs.

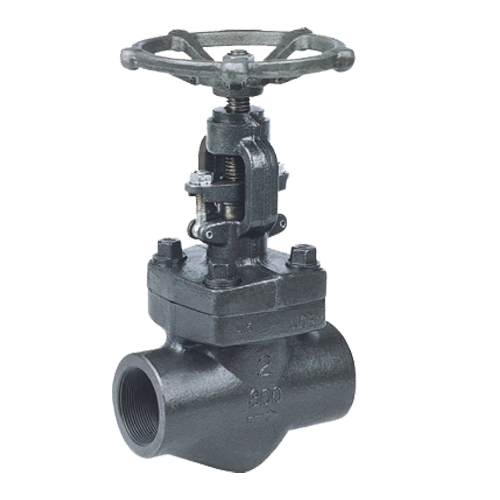

Bolted bonnet type forged steel 3/4in 800lb globe valve threaded end

Bolted Bonnet

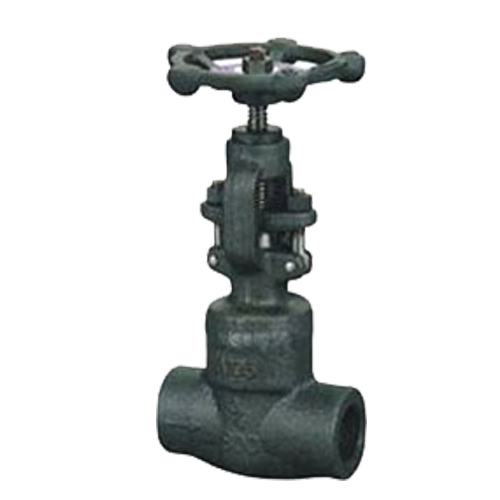

Welded bonnet type forged steel 1in 800lb globe valve threaded end

Welded Bonnet

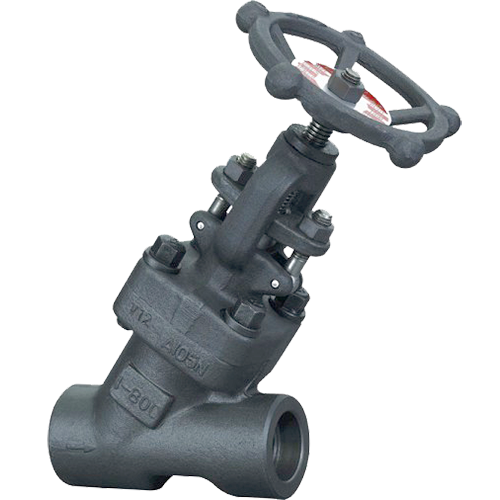

Y type forged steel 2in 800lb globe valve threaded end

Y Pattern Bonnet

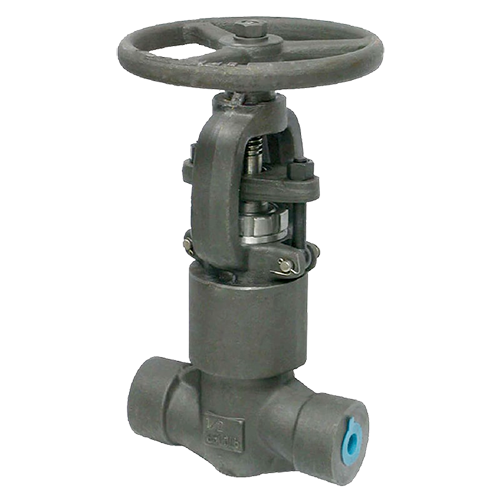

Pressure seal forged steel 2in 2500lb globe valve socket welded end

Pressure Seal Bonnet

Features and Benefits

Beyond standard offerings, our expertise extends to valves designed for extreme conditions. We supply forged steel globe valves for cryogenic service, built to perform reliably in extremely low-temperature environments like LNG processing. Available in a range of sizes, such as a 2 inch forged steel globe valve, our product portfolio ensures you find the precise valve to meet your application's flow, pressure, and temperature requirements.

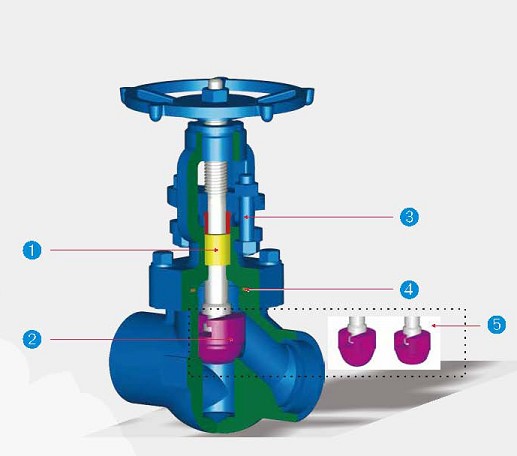

Cross-sectional diagram of forged steel globe valve 2in 800lb with socket welded end

Positive Backseat & Enhanced Stem Seal

A positive backseat, high quality packing material and improved stuffing box design ensure tighter stem seal.

Fully Guided Solid Disc

Fully guided solid disc ensures perfect alignment of disc and seat and reduces wear on seating surfaces.

Stud and Bolt Arrangement

Stud and bolt arrangement facilitates packing maintenance.

Recessed Body-Bonnet Joint Design

Recessed Body-Bonnet Joint design captures the stainless steel spiral wound gasket ensuring body/bonnet sealing integrity.

Plug Style Discs

Plug style discs are standard; others are available upon request.

Whether you require a standard forged steel stop valve or a highly specialized configuration, our products represent the pinnacle of durability, safety, and performance. Explore our collection to find the engineered solution that brings reliability and longevity to your most critical fluid control systems.

Technical Drawings & Resources

Download detailed technical drawings, product brochures, and specifications for our valves. These resources provide comprehensive information for engineers, procurement specialists, and maintenance teams.

?Technical Drawings

Complete set of detailed engineering drawings in PDF format for easy integration into your design projects. Includes dimensional drawings, assembly diagrams, and installation guidelines.
