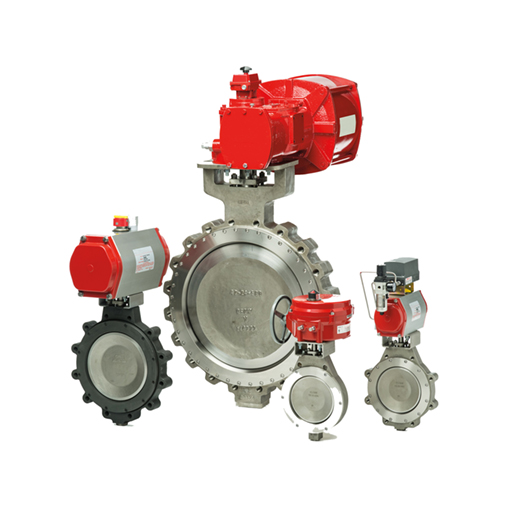

High Performance Butterfly Valve

Browse：16
Product Introduction：
A High Performance Butterfly Valve is an essential piece of industrial equipment designed to regulate or isolate fluid flow in demanding applications. Unlike standard butterfly valves, the HPBV is engineered to handle higher pressures and temperatures, offering superior sealing and longer service life. The key to its performance often lies in the double offset butterfly valve design.

+86 577 670 55569

Product Details

Product Overview

The double offset butterfly valve (also known as a double eccentric butterfly valve) features a unique disc and stem configuration. The two "offsets" ensure that the disc moves clear of the seat during the first few degrees of opening, minimizing wear and friction. This design results in a tight, bi-directional seal and allows for a quarter-turn operation, making it ideal for rigorous, high-cycle applications.

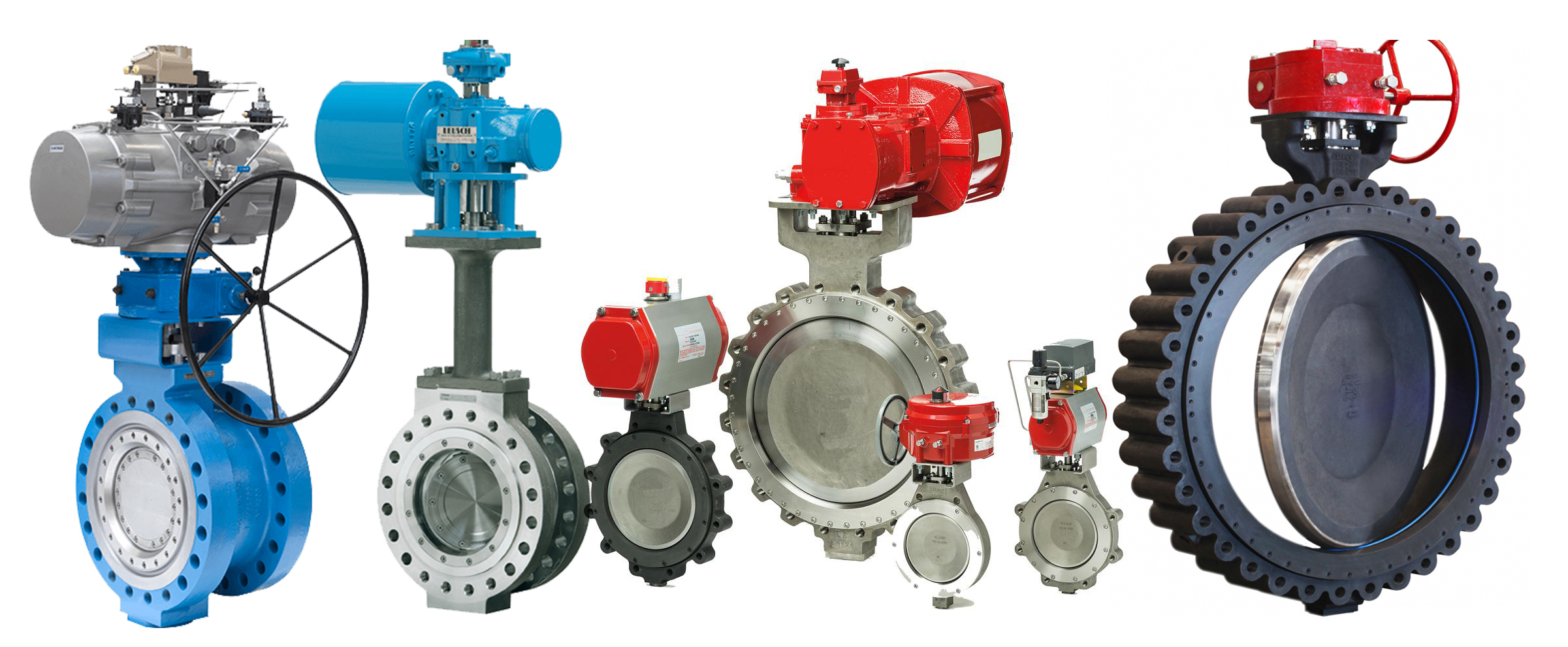

Double offset high performance butterfly valve wafer and flange type with gear

Shield™ High Performance Butterfly Valve - Wafer and Flange Type with Gear Operator

Features and Benefits

When reviewing high performance butterfly valve specifications, look for these critical features:

Robust Construction: Available in lug type or wafer-style designs to suit your piping needs.
Advanced Sealing: Options include a fire seal design for safety-critical applications, compliant with industry fire-safe standards.
Compliance: Our valves are manufactured to meet international standards like API 609, ensuring quality and reliability.
Durability: The offset design drastically reduces seat wear, extending the valve's operational life and making it one of the best high performance butterfly valve choices for your investment.

Applications and Industries

Our high-performance butterfly valves are built to excel in critical applications across various industries:

Oil and Gas

Reliable performance in pipelines, refineries, and offshore platforms.

Water Treatment

Excellent corrosion resistance for treatment plants and distribution systems.

Chemical Processing

Constructed from materials that withstand aggressive media.

Power Plants

Durable operation for cooling water, feedwater, and other systems within a power plant.

Key Design: The Double Eccentric Principle

When comparing a double offset vs triple offset butterfly valve, the primary difference lies in the sealing mechanism. While triple-offset valves use a metal-to-metal seal for extreme temperatures, the double-offset design typically incorporates a resilient seat, providing excellent bubble-tight shut-off for a wide range of services.

Valve Construction & Components

Below is a detailed breakdown of the key components that ensure the reliability and performance of our high performance butterfly valves:

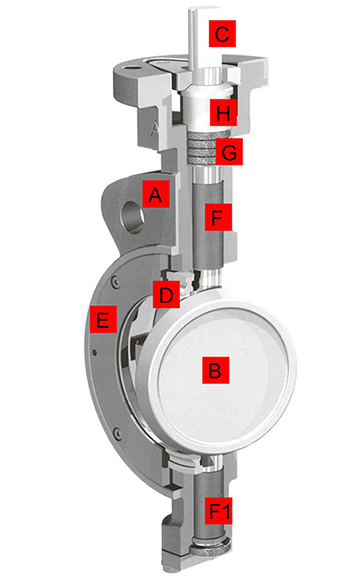

A Body: Heavy duty body, double offset type.

B Disc: Solid stainless steel.

C Stem: One-piece stem with a blowout prevention ring located bottom. The high-strength, one piece stem is 17-4 Ph Stainless Steel. The valve stem is standardized for interchangeability of actuators.

D Seat: Fully replaceable Energizer encapsulated in RTFE.

E Seat Retainer: Retainer is firmly attached by bolts located outside of sealing area, protecting the bolts from corrosion.

F Top bearings: Consisting of a 316 Stainless Steel shell with a TFE/glass fabric liner bearing surface securely support the stem. The stem bearings provide excellent resistance to corrosion and distortion from high temperatures and mechanical loading forces.

F1 Bottom bearings: Additional bearing support at the bottom.

G Packing: The stem packing system features easy access to adjusting hex head nuts without requiring removal of the actuator. The system consists of a gland ring, a gland retainer, studs, hex head nuts and lock washers.

H Packing Gland: Stainless steel.

Your Trusted Valve Partner

As a leading high performance butterfly valve manufacturer and supplier, we are committed to providing solutions that meet your precise technical and operational demands. Whether you are an engineer specifying a valve or a distributor looking for a reliable product line, we are here to support you.

Ready to find the perfect valve for your system? Explore our product catalog, check the double offset butterfly valve price, or contact our team to buy double offset butterfly valve units and request a high performance butterfly valve quotation today.

Shield Valve Co., Ltd. specializes in manufacturing high-performance industrial valves for critical applications. Our double offset/eccentric butterfly valves are engineered for reliability, durability, and optimal performance in the most demanding environments.

Technical Drawings & Resources

Download detailed technical drawings, product brochures, and specifications for our valves. These resources provide comprehensive information for engineers, procurement specialists, and maintenance teams.

?Technical Drawings

Complete set of detailed engineering drawings in PDF format for easy integration into your design projects. Includes dimensional drawings, assembly diagrams, and installation guidelines.
