Threaded/SW Ball Valve

High Performance Industrial Ball Valves with Threaded or Socket Weld Connections

Stainless Steel Threaded/SW Ball Valve with Full Port Design

Overview

The threaded and socket weld (SW) ball valve is a quarter-turn rotary valve that uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. Threaded/SW ball valves are known for their durability and excellent sealing capabilities, even after long periods of disuse. These valves are particularly valued in industries where space is at a premium and where high pressure and high-temperature fluids are present.

Threaded connections (typically NPT - National Pipe Thread) allow for easy installation and removal without welding, making them ideal for systems that require regular maintenance or modification. Socket weld connections, on the other hand, provide a permanent, leak-proof joint that is stronger than threaded connections and suitable for high-pressure applications. Both types offer distinct advantages depending on the specific requirements of the application.

Features and Benefits

Threaded and socket weld ball valves from Shield offer superior performance and reliability for demanding industrial applications. Our valves are engineered to provide leak-tight sealing, long service life, and easy operation in even the most challenging environments.

✓

Robust Construction

Manufactured from high-quality materials including stainless steel, carbon steel, and brass to ensure durability and corrosion resistance in various operating conditions.

✓

Easy Installation

Threaded (NPT) connections allow for quick installation without welding, while socket weld connections provide permanent, leak-proof joints for high-pressure applications.

✓

Quarter-Turn Operation

Simple 90-degree operation from fully open to fully closed provides quick and easy flow control with visual position indication.

✓

Excellent Sealing

Bidirectional sealing capability with low torque operation. Various seat materials available including PTFE, reinforced PTFE, and metal seats for high-temperature applications.

✓

Full and Reduced Port Options

Available in full port (full bore) design for minimal pressure drop or reduced port (standard port) for cost-effective solutions where pressure drop is not critical.

✓

Versatile Design

Suitable for a wide range of media including water, oil, gas, steam, and corrosive chemicals. Available in two-piece, three-piece, and floating ball designs.

✓

Fire-Safe Design Available

Optional fire-safe design with secondary metal sealing ensures valve integrity in case of fire, meeting API 607, API 6FA, and ISO 10497 standards.

✓

Low Maintenance

Simple design with few moving parts reduces maintenance requirements. Many designs allow for in-line maintenance without removing the valve from the pipeline.

✓

Wide Temperature Range

Suitable for applications from cryogenic temperatures (-196°C) to high-temperature services up to 450°C, depending on materials and design.

✓

Multiple Actuation Options

Compatible with manual handles, gear operators, pneumatic actuators, electric actuators, and hydraulic actuators for automated control systems.

Applications and Industries

Threaded and socket weld ball valves are versatile components used across numerous industries for isolating, distributing, and controlling the flow of various media. Their reliability, compact design, and excellent sealing make them ideal for both general-purpose and demanding applications.

?️

Oil and Gas Industry

Used in upstream, midstream, and downstream operations for crude oil, natural gas, refined products, and process fluids. Ideal for wellhead control, pipeline distribution, and refinery applications.

⚗️

Chemical and Petrochemical

Suitable for handling corrosive chemicals, solvents, acids, and bases. Available in corrosion-resistant materials for aggressive chemical environments.

?

Water and Wastewater Treatment

Used in potable water systems, wastewater treatment plants, irrigation systems, and desalination plants. Available in bronze and stainless steel for water applications.

?

Power Generation

Applications in fossil fuel power plants, nuclear facilities, and renewable energy systems for feedwater, cooling water, steam, and auxiliary systems.

?

Marine and Offshore

Used on ships, offshore platforms, and marine terminals for ballast systems, fuel oil, lube oil, seawater cooling, and various shipboard services.

?️

HVAC and Building Services

Ideal for heating, ventilation, and air conditioning systems in commercial and industrial buildings for chilled water, hot water, and condenser water systems.

?

Food and Beverage

Sanitary ball valves with polished surfaces and appropriate materials for hygienic applications in food processing, dairy, beverage, and pharmaceutical industries.

?

Pharmaceutical and Biotechnology

Clean-in-place (CIP) and steam-in-place (SIP) capable valves for sterile processing, fermentation, and purification systems in pharmaceutical manufacturing.

?

General Industrial

Wide range of applications in manufacturing plants, mining operations, pulp and paper mills, and other industrial facilities for process control and utility services.

Product Series Specifications

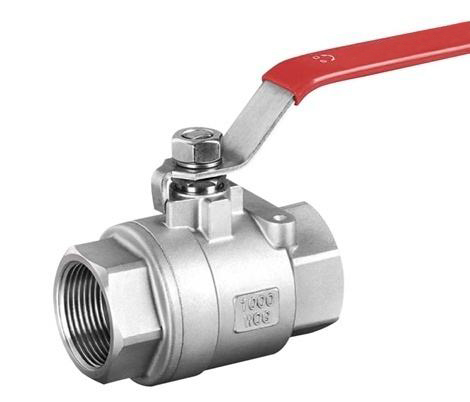

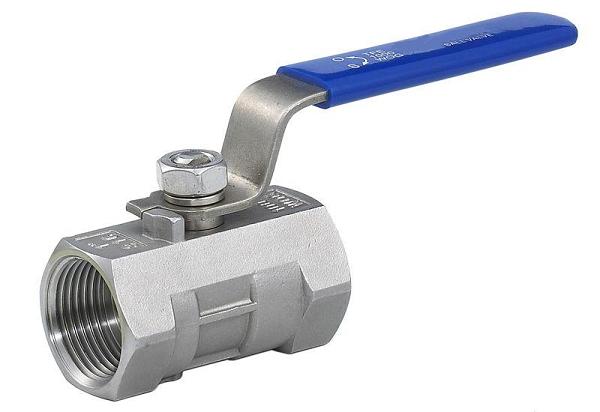

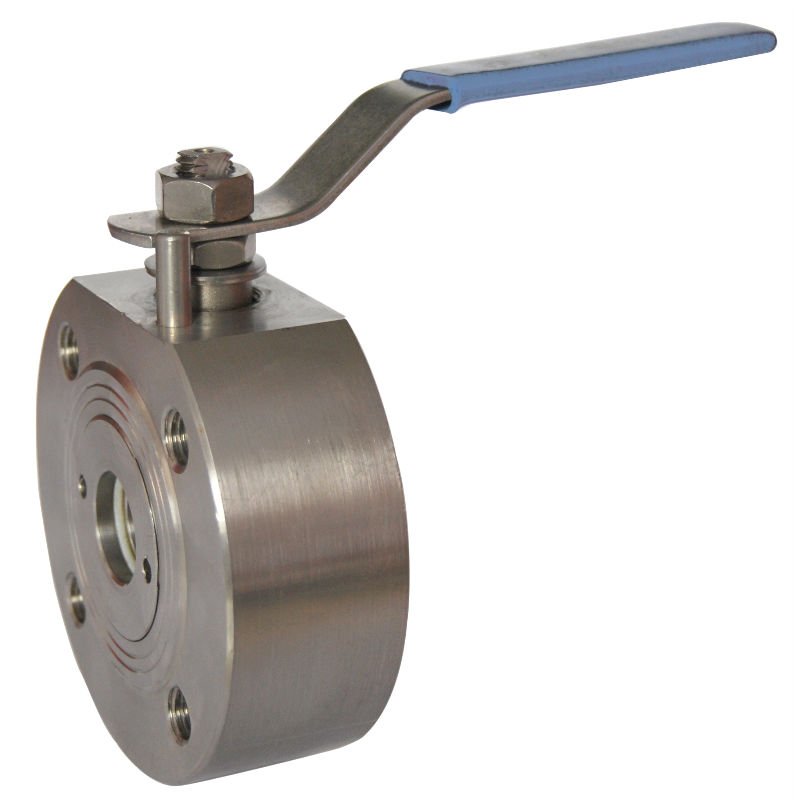

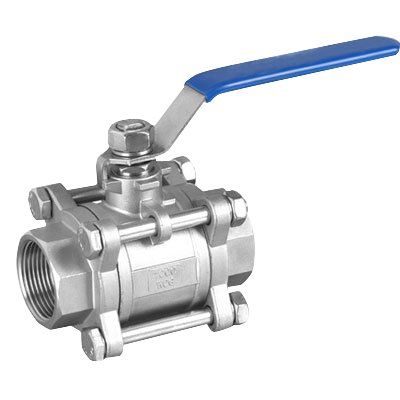

1-PC Ball Valve	2 PC Ball Valve	3-PC Ball Valve	Wafer (Italy) Type Ball Valve
Size:Thread 1/4"~4"	Size:Thread 1/4"~3"	Size:Thread 1/4"~3"	Size:Thread 1/4"~3"
Port:Standard; Full	Port:Standard; Full	Port:Standard; Full	Port:Standard; Full
Pressure:2000WOG; CL800	Pressure:3000WOG; CL800	Pressure:1500WOG; CL800	Pressure:1500WOG; CL800
Material:WCB, SS, Forged Steel	Material:WCB, SS, Forged Steel	Material:WCB, SS, Forged Steel	Material:WCB, SS, Forged Steel
End:Threaded	End:Threaded	End:Threaded, Flanged, BW, SW	End:Flanged, Wafer

Threaded and Socket Weld Ball Valves: Reliable Flow Control Solutions

Threaded and socket weld ball valves represent some of the most versatile and reliable flow control solutions available in industrial applications today. These quarter-turn valves provide excellent shutoff capability, durability, and ease of operation across a wide range of pressure and temperature conditions.

Threaded Ball Valves

Threaded ball valves feature NPT (National Pipe Thread) connections that allow for easy installation and removal without welding. This makes them ideal for systems that require regular maintenance, modification, or where welding is impractical or unsafe. Threaded connections are available in various configurations including female-female, male-female, and male-male connections to suit different piping requirements. These valves are particularly popular in smaller diameter pipelines (typically up to 2 inches) and in applications where disassembly may be required.

Socket Weld Ball Valves

Socket weld ball valves provide a permanent, leak-proof connection that is stronger than threaded connections and ideal for high-pressure applications. The socket weld design involves inserting the pipe into the recessed area of the valve and welding around the joint. This creates a smooth flow path with minimal turbulence and pressure drop. Socket weld valves are commonly used in critical applications where leakage cannot be tolerated, such as in high-pressure steam systems, chemical processes, and hydrocarbon services.

Key Advantages

Both threaded and socket weld ball valves offer quick quarter-turn operation, reliable sealing even after long periods of inactivity, and compact design that saves space compared to gate or globe valves. The full port versions provide minimal pressure drop, while reduced port versions offer cost savings where pressure drop is not critical. With various material options including stainless steel, carbon steel, brass, and special alloys, these valves can handle everything from water and air to corrosive chemicals and high-temperature steam.

Selection Considerations

When selecting between threaded and socket weld ball valves, consider factors such as pressure rating, temperature requirements, media compatibility, frequency of maintenance, and installation constraints. Threaded valves offer easier installation and maintenance, while socket weld valves provide superior strength and leak resistance for permanent installations. Always consult with valve specialists to ensure the right valve is selected for your specific application requirements.
