Application Field
A wide selection of Shield TM ball valves are available in bronze, brass, lead-free, carbon steel or stainless steel materials. Select the right ball valve in one-piece, two-piece, three-piece, full port, or conventional port. A range of trim material is available. The right end connections to choose from include press-to-connect, threaded, solder or flanged. To make your selection easier, Shield TM offers specification and submittal assistance. You also get the assurance of the SHIELDTM warranty, along with superior customer service expertise.
| | | | Food and sanitary industry | Drinking and waste water | Gas and oil | Corrosion resistance |
Shield TM Floating ball valves feature a floating ball design for low torque and increased cycle life. As standard, larger sized valves feature trunnion-type ball support. These rugged ball valves are ideal for industrial applications.
|
|
|
|
|
|
| |
| |
|
|

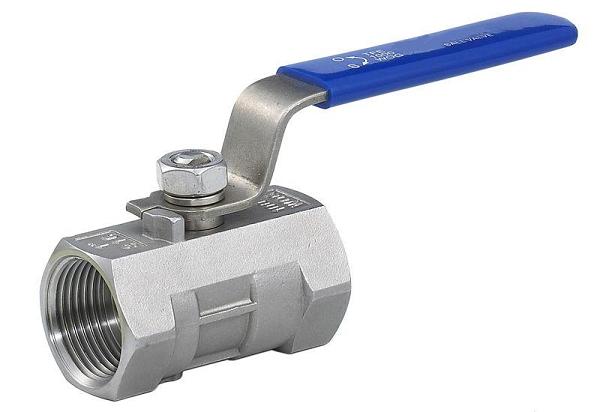

| | 1-PC Ball Valve |

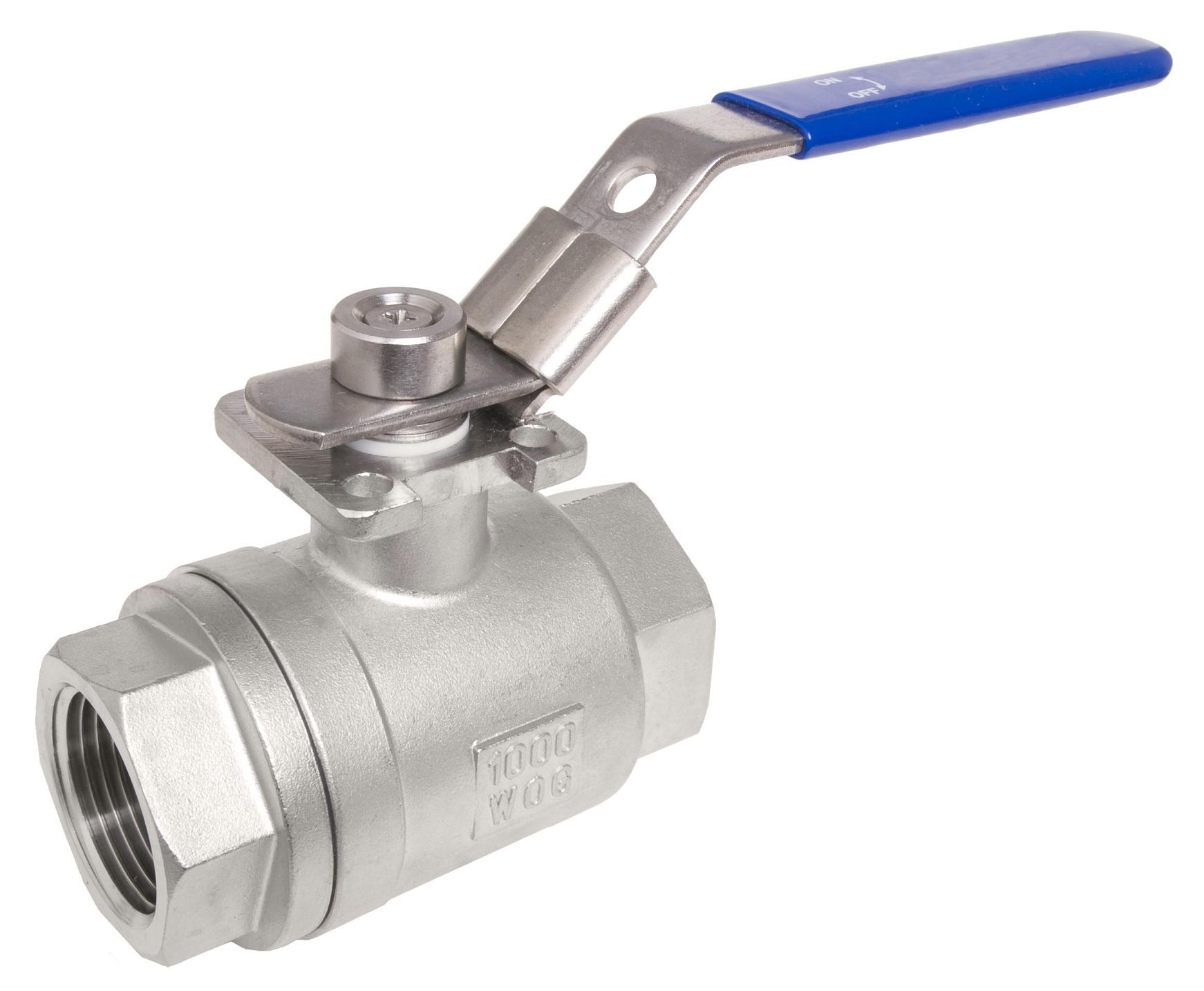

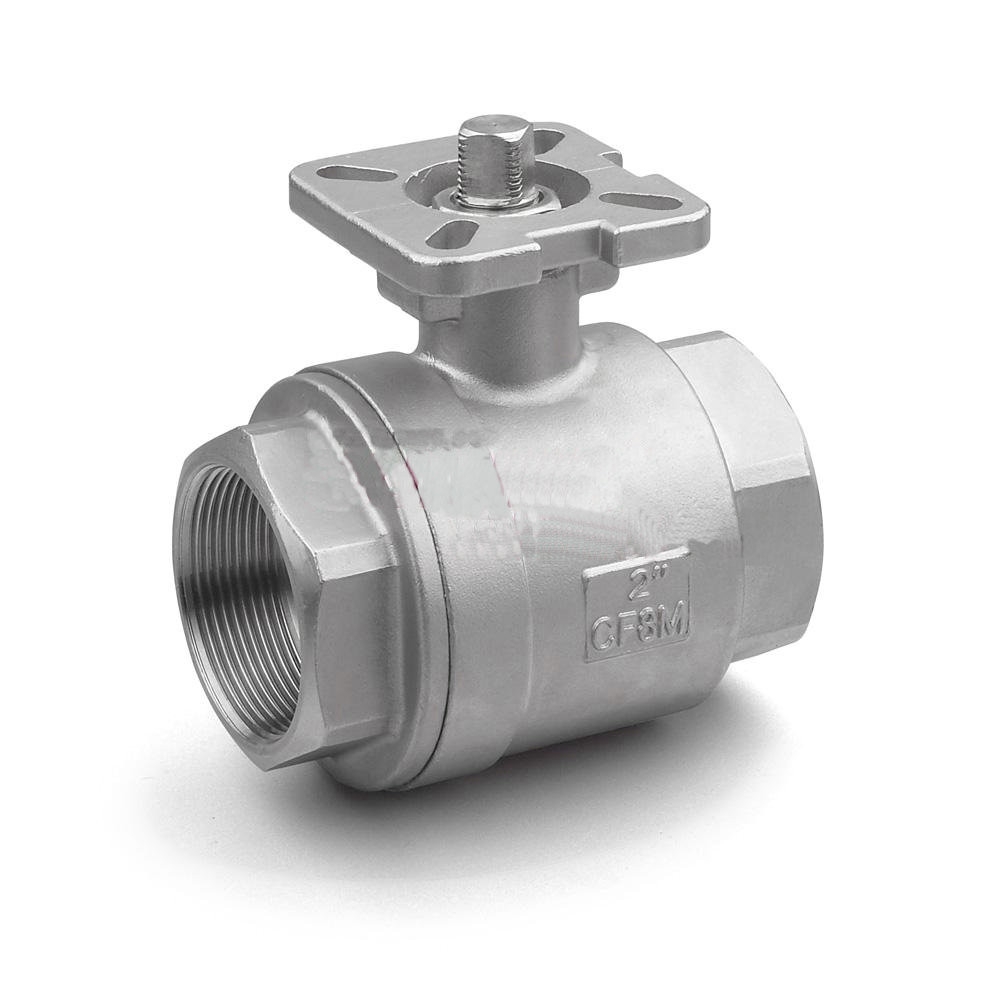

| 2 PC Ball Valve |

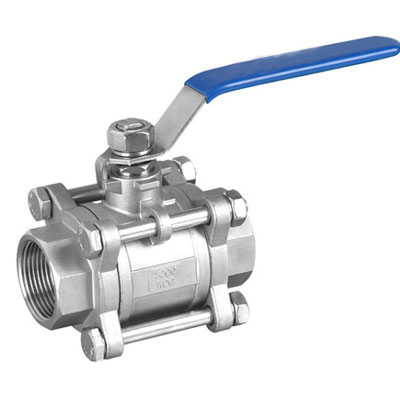

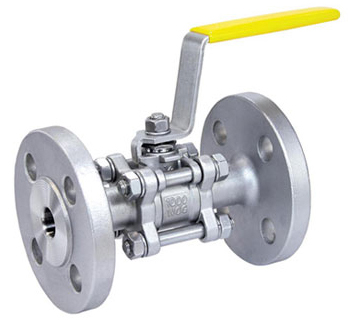

| 3-PC Ball Valve |

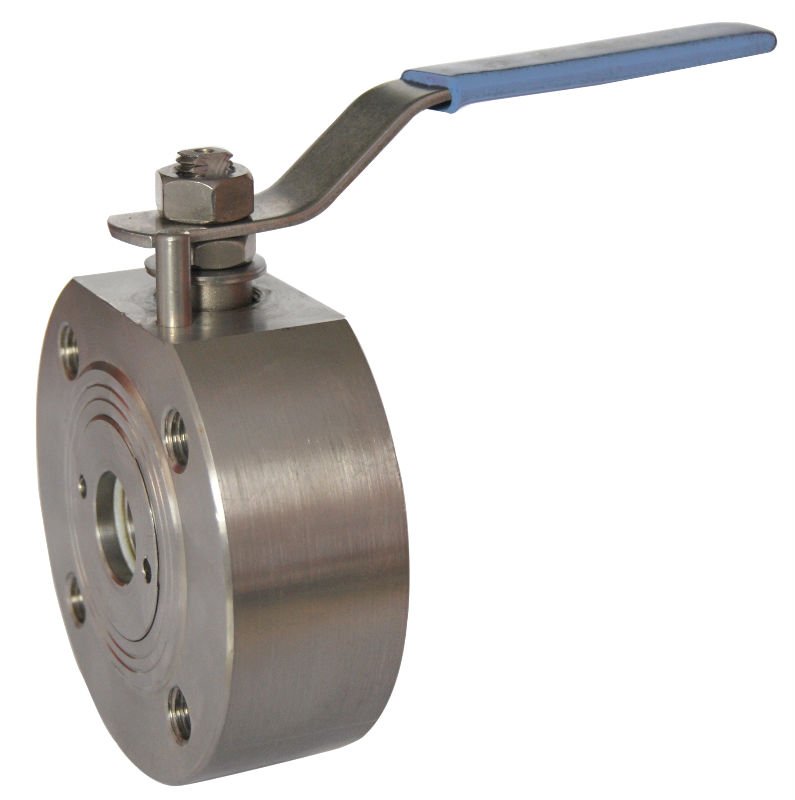

| wafer (Italy)Type Ball Valve | size: Thread 1/4"~4" |
| size: Thread 1/4"~3" |
| size: Thread 1/4"~3" |
| size: Thread 1/4"~3" | Port: Standard; Full |
| Port: Standard; Full |
| Port: Standard; Full |
| Port: Standard; Full | Pressure: 2000WOG; CL800 |
| Pressure: 3000WOG; CL800 |
| Pressure: 1500WOG; CL1500 |
| Pressure: 1500WOG; CL800 | Material: WCB, SS, Forged Steel |
| Material: WCB, SS, Forged Steel |
| Material: WCB, SS, Forged Steel |
| Material: WCB, SS, Forged Steel | End: Threaded, Flanged |
| End: Threaded, Flanged |
| End: Threaded, Flanged,BW, SW |
| End: Flanged, wafer
|
Features & Benefits
Ball valves are quarter-turn valves used in residential, commercial, and institutional applications to control the on-off flow of liquids and gases. They are available in a range of sizes, materials, and connection types.

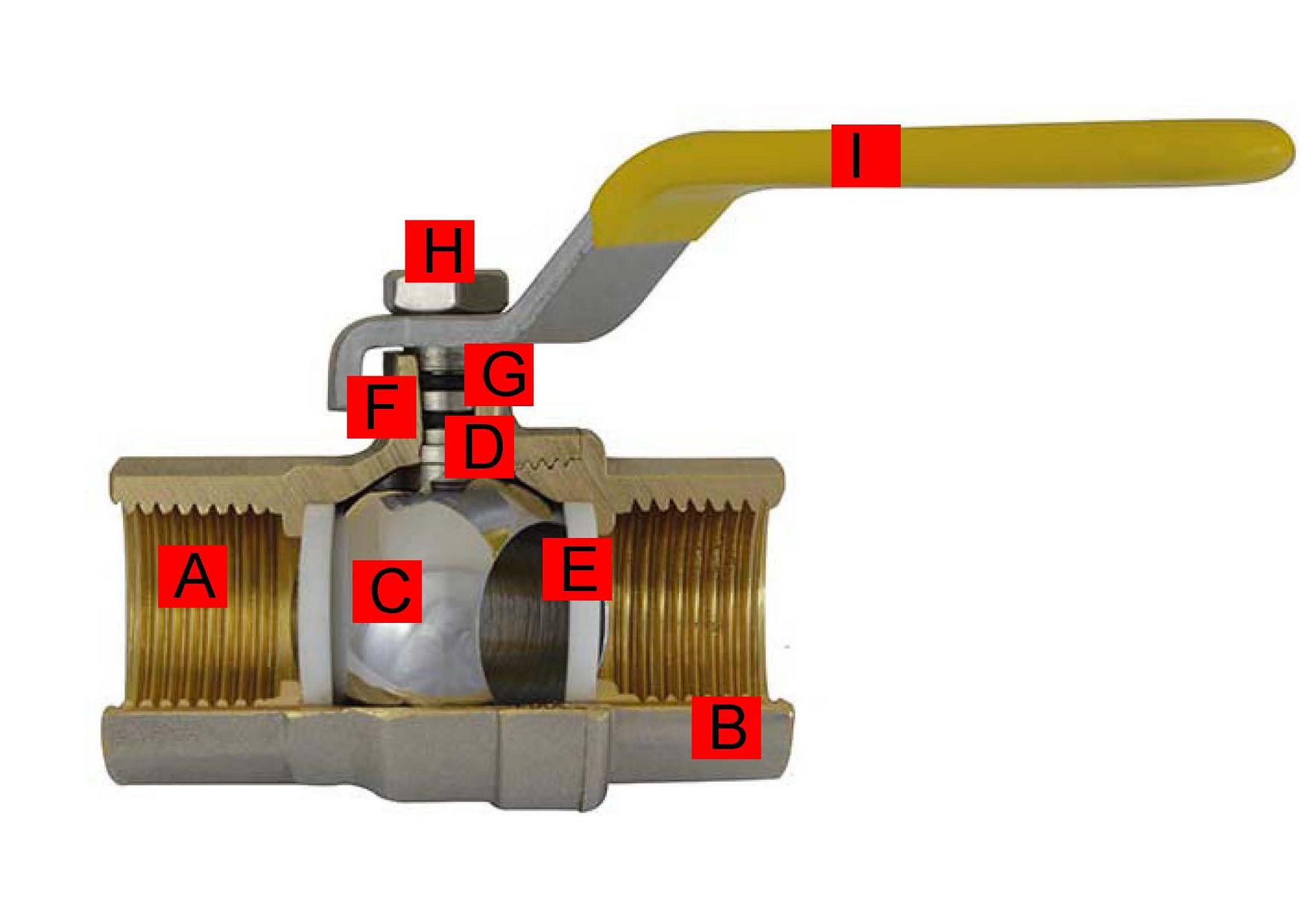

| A Body:Precision casted stainless steel,brass, bronze | B Bonnet: material stainless steel,brass, bronze | C Ball: featuring full port or standard port | D Stem: Blow out proof stem | E Seat: dual sealing system allows valve to be operated in either direction. | F Packing: PTFE | G Gland: to ensure the packing tight sealed | H Nut: Stainless Steel | I Handle: can be diassemblied while valve is under pressure. |

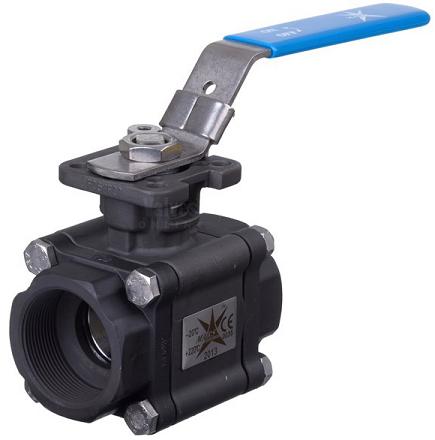

ISO TOP FLANGE | | meet to ISO 5210 standard

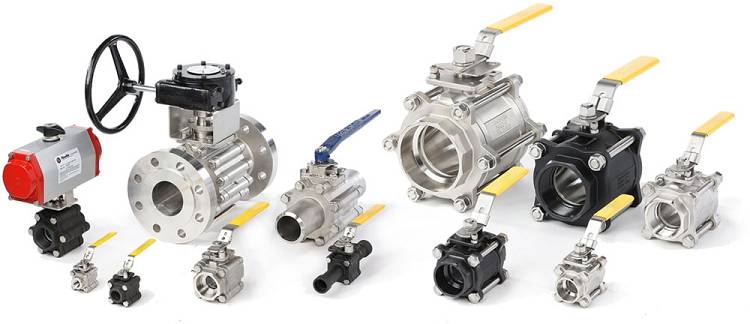

| Various Connection Ends.
| Be compatible with GB, ASME, JIS, EN Standard | | | | | Threaded end | Flanged end | Socket Weld end
| Butt Weld end |
|
|
|
|
|
|
|
|
Size range | Body Material | 2"~4"(DN50~DN100) | Carbon Steel, Stainless Steel, Forged Steel, brass, Al-br etc. |
Temperature range | Stem Material | -62°F to 500°F (-52°C to 260°C) | Stainless Steel |
Pressure ratings | Ball Material | Up to ASME Class 1500Lb (PN260) | Stainless Steel |
Shuttoff ratings | Seat Material | Bidirectional Bubble-tight | PTFE, PEEK, etc. |
Design and Manufacturing Standard | Face to Face | API 6D, API608, EN1983, BS5159, BS5351 | API 6D, ASME B16.10, EN558, ISO 5752, BS2080 |
End connection | Testing |
Flange: ASME B16.5, EN1092 Butt Weld: ASME B16.25, EN12627 Socket Weld: ANSI B16.11, EN12760 Thread: ASME B1.20.1, EN10226 | MSS SP-61, API 598, EN 12266-1 |
Contact one of Shield's valve and automation experts today to learn more about our Ball Valve series. |
|
|
|
