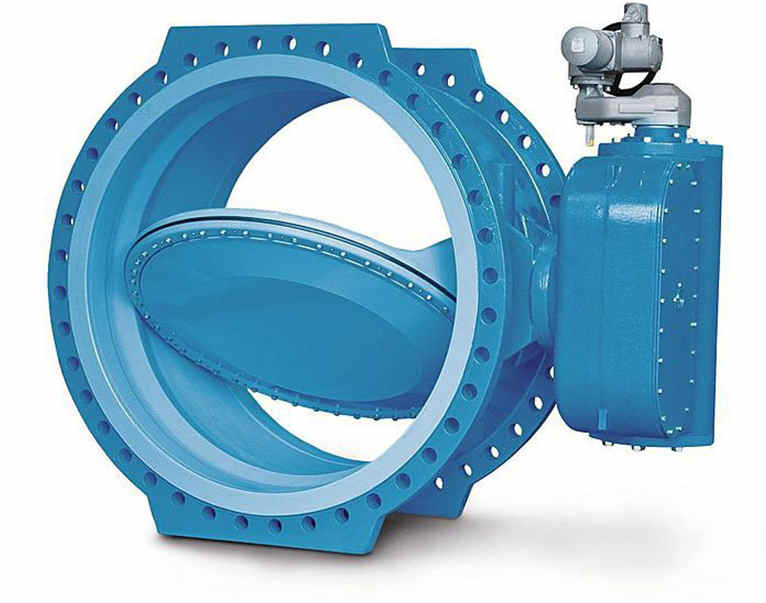

Compatible with AWWA C504 |  | Size Range | | 2 - 120" (50 - 3000mm) | Temperature Range
| | 14°F to 176°F (-10°C to 80°C) | Pressure Ratings
360 psi (25 Bar) 150 psi (10 Bar) | | End Type | | Flanged |  |
|
Features and Benefits
Introducing our top-of-the-line Double Eccentric Butterfly Valve, the perfect choice for high-performance applications that demand precision and durability. This valve features a unique Double Offset design that reduces wear and extends valve life, making it ideal for a variety of industrial processes.
Our Double Eccentric Butterfly Valve comes Flanged configurations, making it easy to install and integrate with existing pipelines. Choose from our range of actuation options, including Electric, Pneumatic, and Manual, to find the perfect fit for your specific needs.
Built with high-quality materials, our valve is available in both Stees and Cast Iron options, ensuring that it will withstand even the toughest conditions. Plus, our EPDM and Viton sealing options offer added chemical and temperature resistance for applications that demand it.
Our valve is designed to be versatile and adaptable, with options for Gear Operated, EPDM Seated, and Resilient Seated configurations. And with our commitment to quality and performance, you can be confident that our Double Eccentric Butterfly Valve will deliver reliable performance for years to come.
Whether you're looking for a valve for water treatment, chemical processing, or any other industrial application, our Double Eccentric Butterfly Valve is the solution you've been searching for.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | Epoxy coating avaliable |
| Various materials |
| Limited to PN25 |
| Fits to all actuators |
| ISO top flange | | kinds of color option |
| DI,CS,SS,DUPLEX etc |
| 100% bi-direction seal |
|
|
| Meets to ISO 5210 |
Design
ShieldTM double eccentric butterfly valves disc design and sealing through elastomer seals fixed to the disc for optimum tightness and allowing seal maintenance without disassembling the valve. Its soft seal option provides excellent sealing capabilities in both directions which delivers excellent shut-off against applications. Rugged fabricated construction, available in a wide range of sizes and special materials to match specific requirements and depending on the head under which the valve will operate. It may be equipped with by-pass for pressure balancing and a counterweight for emergency shutoff.
ShieldTM double eccentric butterfly valves (AWWAC 504 butterfly valve) are compatible with the standard AWWA C504 fully. Robust design in all respects of body, shaft and disc with streamlined low head loss anti flutter contour, it is designed with tilted and fixated disc for extended service life and easy operation. The disc seal is made of drinking water approved EPDM rubber featuring an excellent compression set and thus ability to regain its original shape. The epoxy coating and the corrosion protected shaft end zones ensure high durability.
|
|
|
|

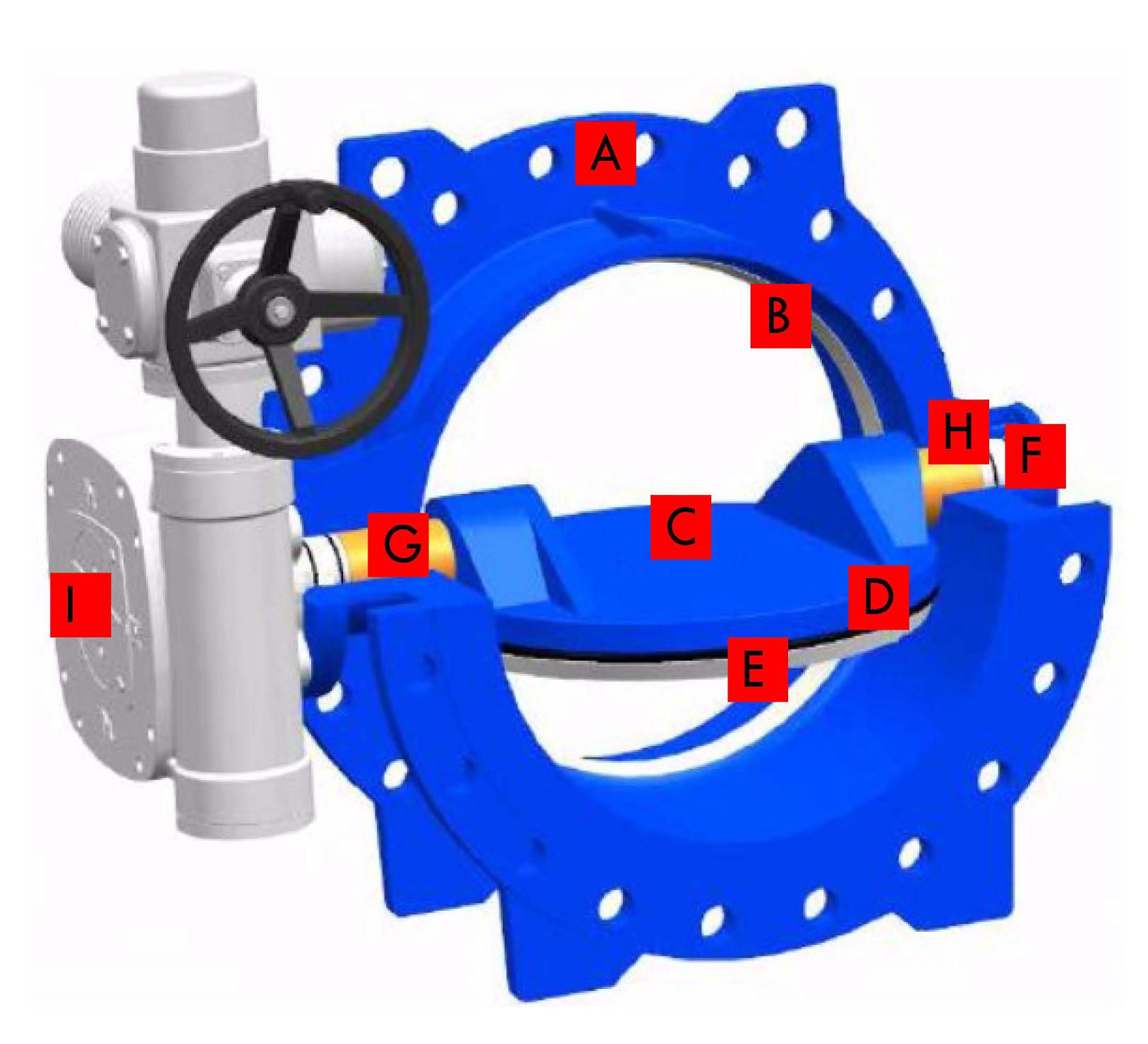

| A BODY: Heavy duty body, Double eccentric type. | | B SEAT: Stainless Steel overlaied. | C DISC: The disc is fixated to prevent wear and fluttering. | D SEAL RING: The disc seal profile and rubber quality ensure low closing torques and Bidirectional sealing. | | E RETANIER: Stainless steel to ensure the seal is perfect. | | F BUSHING: To low operating torques. | | G STEM: Stainless Steel. | | H O-RING: Replaceable shaft sealing with an EPDM O-ring on a stainless steel ring. | I ACTUATOR: Available with penumatic,hydraulic, electric or manual actuator. |
|
